Tesla used a range of different coil geometries throughout his experimental work, including flat^{[1]}, cylindrical^{[2]}, conical^{[3]} , and separated cylindrical secondary with an extra coil^{[4]}. Each of these different geometries present different advantages and different limitations, and hence it is important for any experiment using a Tesla coil or TMT system to choose a coil geometry best suited to the type of experiment at hand. Different experiments are designed to study different aspects of electrical phenomena and qualities including, displacement and transference of electric power, radiant energy and matter, wireless, single wire, and low-loss transmission, longitudinal modes and cavity effects, plasma and dielectric effects etc.

The electrical dynamics and properties of different Tesla coil geometries is a complex and involved field, and has been much explored both theoretically and practically in the prior art, and notably including Dollard^{[5,6] }and Corum *et al.*^{[}^{7,8]}. In the first part of this post we review some of the most important experimental considerations for coil geometry that I have observed and encountered throughout my research so far. In the second part we take a look at a cylindrical coil design suitable for plasma effects and other discharge phenomena when combined with an extra coil, and similar to a design by Eric Dollard for his cosmic induction generator.

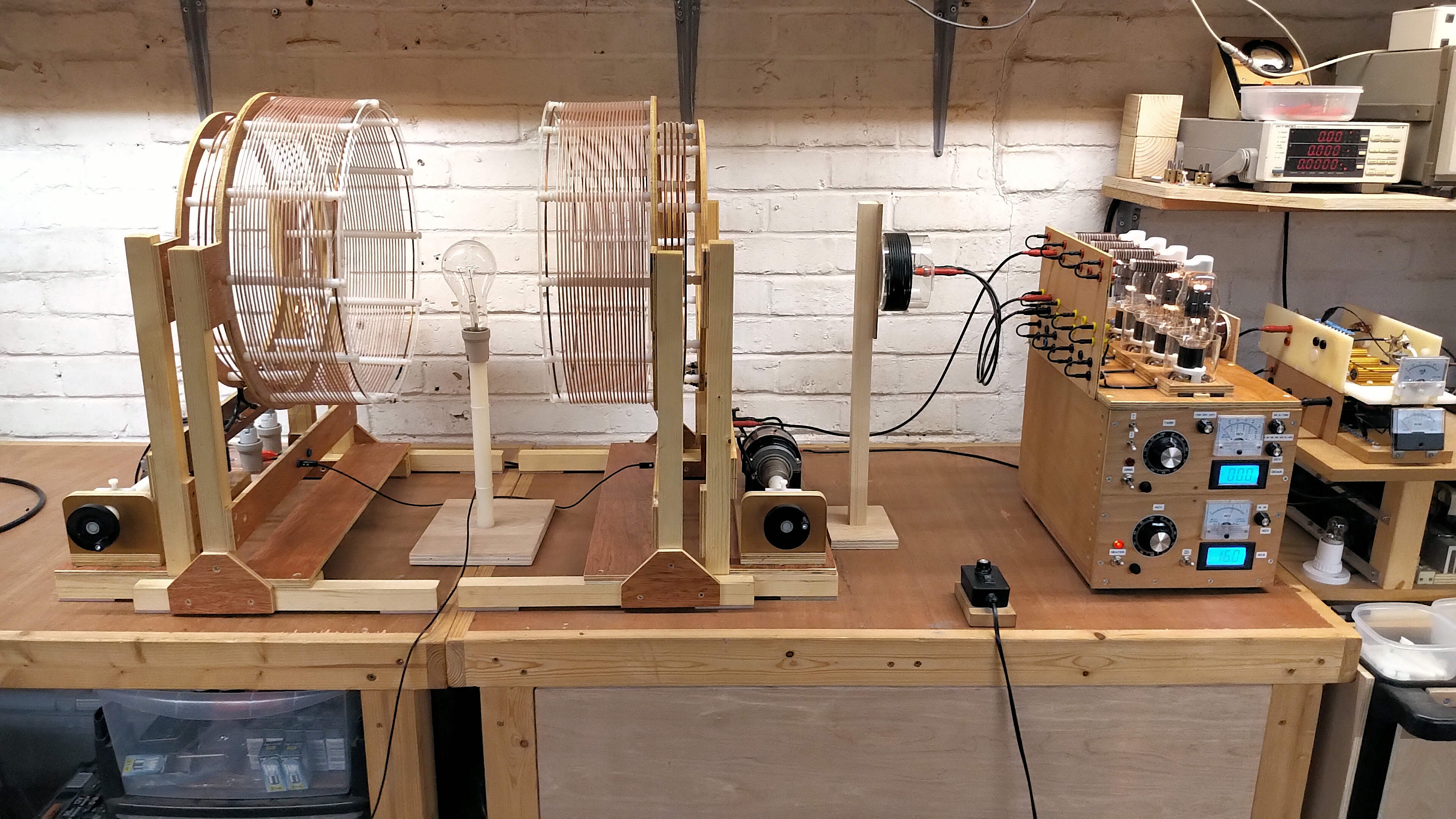

Figures 1 below show the final cylindrical coil design in a variety of configurations, including a TMT system for transference of electric power experiments, induction generator plasma experiments, and both driven using the Quad 811A tube board. The detail of these experiments, phenomena and measurements will be reported in subsequent posts.

**Coupling and Free Resonance**

A Tesla coil can be considered to be a resonant air-cored transformer when excited by a linear sinusoidal drive to the primary coil. As such it is fundamentally important to ensure that as much energy as possible from the generator, is transferred from the primary coil to the secondary coil as quickly as possible, so the coupling between the two coils is maximised. At the same time, at least the secondary coil must be able to freely resonate according to the nature of its design and geometry, and with maximised quality factor and minimised resistive losses, requiring minimised coupling between the two coils. In some cases both the primary and secondary coils are arranged to resonate in tune with each other whilst maximising the resonant properties of the secondary. These two fundamental requirements of Tesla coils present a trade-off or balance that must be optimally struck in any TC design, and according to the intended application.

Maximising coupling of the primary and secondary implies tightly coupled coils which are in close proximity to each other, and that maximise the enclosed area of intersection of the magnetic field of induction, **Φ**. Increased coupling reduces the ability of the secondary coil to freely resonate at its fundamental resonant frequency, as it becomes increasingly driven by the primary, quenching the Q of the coil system, and tending towards a standard, magnetically coupled, non-resonant transformer.

The secondary coil on its own will freely resonate with maximum Q and impedance at the fundamental resonant frequency according to its design, geometry, and the materials used in its construction. As a primary coil is brought into proximity with the secondary the coupling starts to increase from zero and the properties of the two coils start to interact. With a non-zero coupling coefficient energy can now be transferred between the two coils, but the freely resonant properties of the secondary also start to change, influenced by the impedance characteristics of the primary, resonant or not.

The most optimum balance between these two requirements can be established in a separated secondary induction and extra coil arrangement, where tightly coupled induction can occur between the primary and secondary, whilst the free resonator properties of the coil system are maintained by the extra coil. This coil geometry is considered in more detail later in this post.

**Field Distribution. Magnification and Compression**

Magnification of the dielectric field of induction, **Ψ**, occurs from turn-to-turn of the secondary, starting from those turns most tightly coupled to the primary and enclosing the largest area of intersection with **Φ** from the primary. This magnification of **Ψ** is influenced by the geometry of the secondary through compression of the field distribution. In a cylindrical coil each turn moving away from the coupling region describes the same area and path length, which in principle leads to a uniform exponential increase in the magnification of **Ψ**.

In contrast, in a flat coil geometry each turn becomes smaller than the last as the turns move away from the outer coupling region. In this case **Ψ** is progressively compressed towards the centre of the coil increasing the magnification non-linearly towards the centre high-end of the coil, and leading to a highly non-linear dielectric induction field distribution. For the same number of turns **Ψ** is measurably higher towards the high-end in a flat coil, than for the same turn measurement in a cylindrical coil.

For coils designed to explore phenomena related to the imbalanced magnification of the dielectric field of induction **Ψ** e.g. attractive and repulsive forces, low temperature light emission and “cold” electricity, charge accumulation and storage, and “fern” effect discharges, then compression is particularly important in the geometry of the required coil. In this case a flat coil with many smaller turns to the centre, or a conical coil with turns concentrated towards the cone tip, are more suited to investigation of these kinds of phenomena.

Cylindrical coils, or separated secondary induction and extra coils, are better suited for experiments requiring a balance between **Ψ** and **Φ** e.g. for experiments in the displacement of electric power with a non-linear impetus, telluric and single wire transference of electric power in a TMT system, and plasma phenomena.

**Charge Distribution, Conductor Volume and Surface Area, and boundary Conditions**

If we consider the secondary coil to be a continuous metal conductor, at a typical resonant frequency between 10kc – 10Mc, then geometry effects considerably the charge storage and distribution across its surface. In the case of a flat coil the largest proportion of conductor is closer to the outer coupling region, and hence the distribution of charge on the conductor is biased towards the outer perimeter of the coil with less towards the centre. The effect of this is to electrically damp the resonant properties of the secondary towards the centre, so less energy can be stored and released in each resonant cycle, which in turn effects the amount of energy that can be coupled to the longitudinal mode within the cavity described by the secondary coil system.

In my own research I have found it to be critically important in coil design, for the purpose of investigating displacement events and their related phenomena e.g. radiant energy emissions, to ensure that we create a system which is best suited to sustain for as long as possible the coherent balance and continuity between the dielectric and magnetic fields of induction. In this way we so arrange our design to ensure that any generated displacement events occurring from or within the generator, from or within the medium conveying the electric power, and from or within any load thus designed to receive or utilise this power, will sustain the event for as long as possible and with amplitude such that it can be investigated and measured. Tesla^{[9]} suggested and established this requirement clearly, in that the conducting boundary conditions for **Ψ** and **Φ **must ensure the maximum balance, continuity, and coherence for these two inter-dependent fields when moving from one section of an electrical system to another. In this way he established that the requirement between the primary and secondary of a magnifying transformer should be made from equal volumes of conductor.

From further investigation by others, notably Dollard^{[5,10]}, where the density of the conductor in the primary and secondary is the same, (e.g. for a primary and secondary both with copper as the conductor), equal volumes of the conductors can be considered equivalent to equal weights of the conductors, and has been found to apply best when working at lower frequencies where the skin effect does not have a significant effect on the impedance of the conductor, e.g. when working with normal copper or aluminium conductors at a frequency < 3000kc. At higher frequencies where the skin-effect can dominate the impedance of the conductor, balancing the bounding conditions for the two fields of induction can be better accomplished by equal surface area of the conductors.

In any calculation of equal weights or surface areas of the system conductors it is necessary to consider the overall resonant system of both the primary and secondary. For example, if the primary is tuned by a vacuum variable capacitor then this and the inter-connection conductors must be added to the calculation. If the secondary coil includes a top-load e.g. metal toroid, multi-wave oscillator resonator, or other conductive arrangement this must also be added to the calculation for the secondary. Empirically any conductor that contributes to the resonant circuit of the coil needs to be factored into the equation.

It is also empirically suggested that this calculation is adequate for the dielectric field of induction **Ψ**, and that for complete continuity there must be a balance in magnetic materials as well. Normally magnetic materials are to be avoided or eliminated in the design of a TC in order to prevent reduction and/or distortion of the magnetic coupling between the primary and secondary, and parasitic inductive losses. If magnetic materials are deliberately placed in the design e.g. when using a magnetic disruptor to quench the primary spark gap, which also forms part of the primary resonant system, then this should be balanced out magnetically in the secondary load circuit.

**Geometry and the Longitudinal Mode Cavity**

One of the unique qualities of any TC geometry is that a longitudinal cavity is established between the outer boundary conditions of the secondary coil. The Longitudinal Magneto-Dielectric (LMD) mode has been considered both theoretically and experimentally in the prior art^{[10-12]}, and appears to develop within the secondary coil primarily as a result of the geometrical inter-action between the distributed inter-turn mutual inductance, and the inter-turn mutual capacitance. It is conjectured that the ratio and balance of this distributed inductance and capacitance determines the cavity properties, and hence the formation of a pressure wavefront, where **Ψ** and **Φ** establish and maintain a phase alignment to each other. The outer boundary conditions of the longitudinal cavity are dynamically defined, where significant electrical reflections from impedance mismatch will collapse the phase alignment between **Ψ** and **Φ**, and lead to dissipation of the LMD mode.

In a typical TC the boundary conditions of this longitudinal cavity usually occur at the top-load at the high or inner-end of the coil, and the low or outer-end plus any single wire extension, load in the single wire extension, and termination load at the end of the wire extension, whether this be open-circuit, ground, or other defined load. In a matched TMT system, as in my transference of electric power experiments, the longitudinal cavity can be extended all the way from the “transmitter” cavity through the transmission medium to the “receiver” cavity. In principle when the longitudinal mode is established stably in this cavity, electric power can be passed between the source and load over very great distances, (in the far field condition), and is considered to be a key principle in Tesla’s telluric transmission of wireless power.

The LMD mode of transmission forms as a standing wave between the transmitter and receiver coils of a TMT system. In successive cycles of the generator oscillations, electrical energy is coupled from the generator into the cavity. The pressure of the wavefront in the longitudinal mode moves backwards and forwards as it traverses the cavity from the transmitter to the receiver, reflected from the top load of the receiver and back again towards the transmitter where it is amplified or suppressed by coupling from subsequent cycles from the generator. Whether the longitudinal wavefront is amplified or suppressed depends on the tuning of the system and hence the longitudinal wavelength in the cavity.

At the correct point of tuning the amplitude of the wavefront is reinforced by successive cycles from the generator. The magnitude of this longitudinal wavefront reaches an equilibrium in the cavity based on the impedance characteristics of the cavity medium, its tuning, and dissipation of the stored power to both the transmission medium, and to the surrounding environment. The longitudinal wavelength within the medium is longer than that of the generator excitations, which represents a lower frequency of oscillation for the longitudinal mode. This puts the phase aligned **Ψ** and **Φ** wavefront at different phase relationships to any transverse components throughout the length of the cavity, a property of the longitudinal mode that can be measured in the cavity region.

At the correct point of tuning **Ψ** and **Φ** in the LMD mode form a standing wave in the cavity which results from the longitudinal wavelength, where the boundaries of the cavity are defined by the high impedance, high potential, points at the top-loads of the coils, and one or more null points form inside the cavity. At the fundamental frequency of the LMD mode, (not the same frequency as the fundamental resonance of the secondary coils or the generator oscillations), only a single null will exist in the centre of the cavity, and when the coils are closely spaced in the near-field. At higher order harmonics, and dependent on spacing between the coils multiple null points can form.

Empirically through observation and measurement in the various experiments in my research, and particularly in Transference of Electric Power, and Tesla’s Radiant Energy and Matter, a trade-off exists in the geometry of the coil, and the LMD mode. With tight and closely wound turns in a coil with significant magnification, and where height to width ratio > ~ 2, e.g. a conventional tall and narrow streamer coil, the LMD mode can easily be established within the secondary coil, but appears to diminish and tend quickly to zero in any single wire extension from the low end, even when the extension is left open-circuit, (complete wavefront reflection). In this case this type of coil geometry is unsuitable for transference of electric power experiments even in the near-field case. In the close mid-field region, (the boundary of which starts at approximately twice the secondary coil diameter), a TMT with reciprocal and transverse tuned transmitter and receiver coils, the power transferred through to the receiver load would be very low e.g. for 500W of power supplied from the generator only a few watts of power is available at the final load. In the far-field region the coils appear as unconnected from each other, even with a lower impedance single wire extension connected between both low ends of the transmitter and receiver secondary coils. In this geometry case telluric transference of electric power does not appear possible, even when the transmission medium is a relatively low impedance, (less than the combined impedance of the secondary coils at the transverse resonant frequency).

With loosely wound turns where the turn spacing is equal to or greater than the wire diameter, when the magnification secondary to primary turns ratio is lower e.g. 10-15 : 1, and where the height to width ratio is <~ 1, the LMD mode appears to have a lower intensity in the secondary coil, but can extend over very large distances and easily into the far field. In this case, and using a suitable flat or cylindrical coil TMT system the longitudinal mode can be extended across the entire cavity in any extent, near, mid or far-field. Substantial electric power can be transferred from the generator to the receiver load through a low impedance single wire extension, through a telluric channel, or other suitably arranged low impedance or resonant transmission medium, and as demonstrated in transference of electric power experiments.

**Hybrid Coils and Turn layering**

In some cases a combination of coil geometry, or hybrid coil, has proven to be the best choice for the experiment in hand. An example of this would be the flat coil originally demonstrated by Dollard *et al.*^{[11]}, and used extensively in my own research and particularly in experiments on the transference of electric power, and telluric transference of electric power. In this flat coil geometry turn layering is used to produce two flat coil spirals closely spaced to each other, and providing a combination of properties from the flat and cylindrical designs. In particular the magnification of the coil can be increased, without damping the free resonant properties of the coil, and emphasising the compression properties that accentuate dielectric induction field phenomena.

Flat coils with turn layering up to as many as 5 layers can demonstrate excellent magnification and compression whilst retaining loosely wound turns and hence a good longitudinal cavity mode. Such a multi-layered coil is well suited to intense dielectric phenomena, such as Eric Dollard’s “fern” discharge experiment. The disadvantage of progressive turn layering is in the imbalance created between **Ψ** and **Φ**, and with each additional turn the rapidly increasing risk of breakdown at the winding return point. Whilst the longitudinal cavity in a TMT system appears to remain well established where a typical null point can be measured in transmission medium, the amount of power that can be transferred between generator and receiver load appears greatly diminished.

This reduction in transferred electric power is most likely as a result of the geometry imposed imbalance between **Ψ** and **Φ**, where **Ψ **has been significantly accentuated, and **Φ** has been suppressed by the hybrid and turn layered geometry. Maximum power transfer in a TMT system appears to occur when **Ψ** and **Φ** are maintained in dynamic balance, through optimal geometry of the TMT coils, transverse tuning to match the resonant frequencies of transmitter and receiver, and longitudinal mode tuning through obtaining a clearly defined standing wave within the cavity, (accomplished primarily through adjusting the electrical path length of the transmission medium to obtain a strong simultaneous null point for **Ψ** and **Φ** at the cavity centre).

**Secondary Coil Induction and Extra Coil Resonance**

This coil geometry and arrangement is probably the best for resolving the fundamental trade-off between coupling and free resonance, and appears to be Tesla’s^{[4]} own choice of system arrangement for large scale transmission of electric power. In this coil arrangement the induction between primary and secondary is separated from the free resonator or extra coil. This allows the primary and secondary to be tightly coupled and designed to maximise transfer of energy between the generator and primary coil and the secondary coil. The air-core of this primary-secondary induction transformer allows it to operate at a higher frequency than a conventional iron-cored power transformer, whilst retaining resonant properties that improve impedance matching to the generator. The tuned high or low input impedance presented to the generator through correctly matching this arrangement, allows optimal generator drive from a wide range of different source types, including linear sinusoidal oscillators, spark-gap discharges, and other transient and impulse generators.

In Tesla’s case this was driven through very powerful uni-directional disruptive discharges from energy stored in large tank capacitors, and charged by high voltage DC dynamos. In this case the primary-secondary induction transformer requires a very low input impedance, maximising impulse primary currents, which in turn produces very strong magnetic induction field coupling between the primary and secondary. In this case the secondary is arranged in close proximity to the primary, of the same diameter to maximise intersection of the magnetic field of induction, and the number of turns kept minimal to prevent magnification and compression of the dielectric induction field, whilst minimising electrical losses in the secondary, and preventing premature leakage of energy through discharges from the secondary high-end.

The high-end of the secondary induction coil is directly connected to the low-end of the extra coil. The extra coil can be considered in this arrangement as a free resonator, often physically displaced from, or orthogonal to the secondary coil, but can also be driven centrally on axis to the secondary as in Tesla’s Colorado Springs apparatus^{[5,9]}. The extra coil in this arrangement has an optimal electrical length of λ/4, and when combined with the primary – secondary induction transformer, the complete Tesla coil geometry is a tuned system with length 3λ/4, or generally nλ/4 where n is an odd positive integer. When arranged in this fashion the extra coil produces considerable magnification as a free resonator whilst maintaining a good balance between **Ψ** and **Φ**. Interesting variations on the standard high aspect ratio, (tall and narrow for high magnification), cylindrical extra coil geometry, include conical and golden ratio designed coils.

Ultimately the optimal design of this geometry as a resonant magnifying transformer is resolved by impedance matching the various stages of the system from generator to primary, primary to secondary, secondary to extra, and extra to extension and top-load. If a cavity is to be generated at the low end of the secondary coil, then impedance matching from the secondary to the cavity, and any additional circuit elements in the cavity, is also important. This approach to Tesla transformer design is notably explored in the prior art by Dollard^{[5,12]}, and within my own research through looking at TC and TMT system impedance, tuning, and matching using a vector network analyser.

An interesting alternative consideration arises regarding Tesla’s intended purpose for the extra coil, when we take into account that the Colorado Springs apparatus was designed around 1900, and specifically to be driven by powerful impulse disruptive discharges. When the extra coil is arranged to resonate at the third harmonic of the secondary induction system, and where the quality factor (Q) of the extra coil is very high, the output from the top-end of the extra coil will be a very powerful, low distortion, sinusoidal oscillation at a single frequency. This form of output is ideally suited to radio transmission as the carrier wave, and has been selected from a wide spectral bandwidth discharge.

The multitude of frequencies contained within a disruptive discharge are highly unsuitable for radio transmission due to the interference created across bands, and the large amount of energy dispersed across the spectral bandwidth, as demonstrated by the early spark-gap radio transmitters used in the very early 20th century. High power single frequency oscillators for radio transmitters became standard with the development of the vacuum tube in the early 20th century, but before this, and at the time of the Colorado Springs research, Tesla had found a unique way to create a powerful single frequency carrier wave from a wide-band disruptive discharge generator. As an alternative interpretation of his work at this time, the extra coil was ideally suited to both select and tune the output of a very high power transmitter to a single frequency.

**Coil Geometry Comparison Summary
**

**Flat Coil** (loosely wound with 2 layers): Good compression and magnification of the dielectric field of induction, generally suitable for transference of electric power experiments as a TMT system with a secondary to primary turns ratio around 20:2. Shows moderate dielectric induction field phenomena such as attractive and repulsive forces and capacitor charging. Maintains a good longitudinal cavity for LMD experiments when correctly tuned, and the efficiency for the transference of electric power appears moderate around 60%+ when carefully tuned in the transverse modes, and balanced to maintain a longitudinal null point at the centre of the single wire transmission medium.

This coil geometry gives a good general purpose experimental base, the imbalance in **Ψ** and **Φ** due to the compression of **Ψ** limits the efficiency in power transfer, but yields a range of interesting phenomena. Can be readily matched in the primary circuit to either a linear sinusoidal oscillator or a spark discharge generator.

**Cylindrical Coil** (loosely wound): Best geometry to maintain the balance between **Ψ** and **Φ**, and hence highest efficiency in the transference of electric power experiments. In the near to mid-field with correct tuning and balancing efficiency can be > 90%. In a coherent arrangement where the longitudinal mode is established across the entire TMT system from generator to load it may, in principle, be possible to establish 100% displacement of electric power from source to load, although this remains a work in progress to demonstrate and validate.

When combined with an extra coil into the Colorado Springs experimental arrangement, and with suitable Telluric tuning and matching, then far-field longitudinal transference of electric power may also be possible, and appears to remain one of the ultimate goals of this field of energy research. In my research so far I have measured far-field Telluric power transfer, (at ~ 3 miles between transmitter and receiver), of around 10dBm in the 80m amateur band from the upper resonant frequency of a carefully tuned TMT system.

The cylindrical coil geometry, again due to its well balanced **Ψ** and **Φ,** and with a secondary to primary turns ratio between 20:2 and 20:3 also appears best suited to plasma based experiments, such as Dollard’s cosmic induction generator design. This geometry also forms a good induction pump for a wide range of extra coils. A conical extra coil added to a cylindrical coil induction generator greatly improves the compression and magnification of this geometry, accentuating **Ψ**, and yielding good dielectric induction field phenomena.

When mounted on separate support structures the primary and secondary can be moved and positioned relative to each other, which gives free and variable adjustment over the coupling between the primary and secondary coils. In a TMT system where the coupling can be adjusted in both transmitter and receiver, very fine balancing can be accomplished between coupling and primary tuning, and hence the possibility for increased transference of electric power efficiency.

**Streamer Coil** (tightly wound): A high aspect ratio tall and narrow cylindrical coil which is usually more tightly coupled to the primary. This geometry has excellent voltage magnification, and when combined with an accumulator at the high or top-end of the secondary coil can achieve considerable energy storage at very high potentials. Most often used for discharge streamer entertainment, or as a high frequency, high voltage power supply in research, this TC geometry can reach many MVs of voltage magnification and deliver many kWs of power continuously.

Due to the tight coupling and huge magnification**, **dielectric induction field phenomena can be very strong in this arrangement. Longitudinal cavity phenomena and the LMD mode appear to be small in this arrangement, that is, they can be so small as to easily go undetected. This coil geometry is unsuitable for transference of electric power, and experiments where a balance and tuning needs to be maintained between **Ψ** and **Φ**.

**Golden Ratio Geometry**

This is a particularly interesting geometry and could lead to a wide range of interesting phenomena yet to be explored. The golden ratio (GR) is very widely treated in the prior art and the following references constitute further reading on this subject^{[13-15]}. From the perspective of TC and TMT systems the golden ratio can be conceived in a variety of different ways, including the aspect ratio for any of the coil geometries, and in particular the cylindrical and/or extra coils that can have there height to width ratios according to GR, the wire diameter to turn period according to GR, the primary coil as a spiral defined on GR proportions, and the electrical length of the primary, secondary, and extra coils according to GR, and even the ratio between the longitudinal and transverse modes (including the cavity ratio) according to the GR.

It is conjectured that perhaps the most interesting GR relationship would exist directly between **Ψ** and **Φ**, which could be arranged through geometry, tuning, and generator and load characteristics. This area of research and investigation requires considerable further work, and remains work in progress at this time, and to be reported at a future point.

**Displacement, Non-linear Dynamics, and Geometry**

There is a very important distinction to be made in this area, which for me results from the sum total of my research so far, and all the experiments, observations, and measurements that have accompanied this journey. I would assert that Displacement and the observable phenomena that are emitted through the principle and mechanism of displacement e.g. Tesla’s Radiant Energy and Matter, do **NOT** originate as a result of the coil geometry of the experimental system. To clarify, I conjecture that displacement is an underlying coherent principle and mechanism within the inner workings of electricity, and that it is a displacement event that gives rise to the emission of various phenomena, including radiant energy. Displacement seems to be most effectively revealed by driving the experiment in a non-linear or transient fashion e.g. from a cylindrical TC with moderate coupling, driven by an impulse or disruptive discharge generator of at least a moderate power e.g. > 500W.

Therefore I am discriminating between displacement events and their associated phenomena, and the different properties of Tesla coils and TMT systems that result from the difference in balance between the** differentiated** dielectric and magnetic fields of induction, that are brought about by varying coil geometries. Said in yet another way, Tesla’s Radiant Energy and Matter, and other **coherent** electrical phenomena are not the product of coil geometry, but rather underlying coherent processes that constitute the inner, and as yet unexplored, workings of electricity. Whilst this conjecture may be difficult for some to acknowledge without considerable additional supporting evidence and results, something my research is actively engaged in acquiring, it would appear to me completely as common sense that there are underlying processes of a coherent nature that emit coherent forms of phenomena. These coherent phenomena are as yet manifestly unexplained by even the best current understanding of transference, which arises from the **differentiated** dielectric and magnetic fields of induction, and which constitutes electrical properties relating to common circuit characteristics and transmission.

This said, coil geometry and careful design are most important in balancing or preferentially accentuating **Ψ** and **Φ**. The relative balance or imbalance of **Ψ** and **Φ,** which results from a particular coil geometry and experimental system arrangement, results in a specific coil geometry being better suited to different types of experiment e.g. a flat coil for dielectric induction phenomena, a cylindrical coil based TMT system for maximum transference of electric power and plasma effects, Tesla’s Colorado Springs TMT system for far-field telluric transference of electric power etc.

The distinction between geometry based phenomena, and displacement based phenomena can be directly compared and contrasted when the TC or TMT system is driven by a linear sinusoidal source, or a non-linear transient impetus. The non-linear transient impetus will reveal displacement based phenomena related to the **undifferentiated** **coherent induction field****. **The linear sinusoidal drive will reveal phenomena related to **the balance of the differentiated induction fields Ψ and Φ**, through the balance between the transverse and longitudinal modes, and the tuning and boundary conditions of the longitudinal cavity established in the system. Transverse tuning is about selectively coupling as much energy as possible from the generator to the transmitter, and from the receiver to the load, whereas tuning of the longitudinal cavity and its properties, is about transferring as much energy as possible between the transmitter and receiver.

In summary, this is a vast, and probably one of the most fascinating areas of electrical phenomena, that arise from Tesla coil based systems, and warrants considerable further research, observation, and measurement. Suffice to say for now, I would conjecture that the distinction between the **undifferentiated** and **differentiated **induction fields, is in my view key to discriminating between phenomena that relate to displacement (coherent and inner), and those that relate to transference (incoherent and outer). For me the purpose of the Tesla coil is very much as a fine tunable instrument with which to experiment, observe, and measure qualities that will progressively reveal the inner nature and workings of electricity.

For further exploration and discussion on what is presented on this page, please see the Energetic Forum^{[16]}.

**Cylindrical Coil Design and Construction
**

This cylindrical coil was designed to be suitable for plasma experiments including induction generator arrangements, transference of electric power, and as a suitable induction pump for various extra coil configurations. The secondary coil was intended to have its fundamental resonant frequency, the lower frequency when coupled with the primary coil, in the 160m amateur band between 1.8-2.0Mc, and the upper frequency as close to, or tunable into, the 80m amateur band at 3.5-4.0Mc. For induction generator experiments it was decided to keep the diameter of the secondary coil close to that originally designed by Dollard.

The period of the turns in the secondary was kept at the empirical boundary of 2 x the outer conductor diameter of the secondary wire, which appears to maximise the Q of the secondary coil, whilst maintaining good coil longitudinal cavity properties by not excessively loading the inter-turn mutual capacitance of the windings. The wire for the secondary is the many stranded outer shield of RG316 coax, in order to minimise losses in the secondary coil through the skin effect, whilst maximising secondary conductor surface area. The outer diameter of RG316 is 2.5mm, and turn period of 5mm was empirically set as optimal for the intended experimental applications.

When driven by a primary with coupling coefficient to the secondary of ~ 0.1-0.3 the lower resonant frequency can become shifted down from the resonant phase change, set by the wire length, by as much as 500kc, and the upper resonant frequency shifted up by as much as 1500kc. This being the case then the resonant phase change of the secondary, from the wire length, would be set at around 2.2 – 2.3Mc. This will arrange with primary tuning, and adjustment of the coupling coefficient, for the lower resonant frequency to be well within the desired 160m band, and the upper to be close to and tunable into the 80m band.

Tccad 2.0 was used for a rapid and approximate indication of the electrical and resonant characteristics of the secondary coil, the detailed results of which are shown below in figure 2. The parameter “Winding Height of Secondary Coil” on the turn period of 5mm, (“Wire Diameter” 2.5mm + “Spacing Between Windings” 2.5mm), was used to adjust the number of turns in the secondary until the “Approximate Resonant Frequency” and “Secondary Quarter Wavelength Resonant Frequency” were closest to the desired 2.2Mc.

The secondary was arranged to be 24 turns in total, 23 RG316 coax turns + 1 ^{1}/_{8}” copper tube shield and capacity turn. This turn is spaced further away from the end of the coax turns to reduce the possibility of high-end discharge to lower turns, and is also intended to shield distortions to the dielectric field of induction at the high-end of the secondary, and particularly when operated in close proximity to another cylindrical coil or extra coil. The shield turn presents a uniform continuous metal conductor surface at the high-end of the coil, with a more uniform charge distribution, and to a limited degree providing some accumulation at the top-end without excessively loading the resonant frequency of the secondary. This capacity turn is included in the resonant frequency calculation on Tccad as it directly impacts the wire length and hence the resonant phase change of the secondary coil.

The primary design was intended to fully fit inside the secondary for maximum coupling experiments, reducing the outer diameter of the primary to 390mm. This does introduce a distortion in the magnetic field of induction as compared with a primary the same diameter as the secondary, and standing-off a physical distance below the secondary bottom-end winding. For the intended experiments the primary was set as a fixed 4 turns of ^{1}/_{8}” copper tube on a turn period of 9mm, and which have 4 fixed taps, and of course a variable tap can be used on the bare copper tube for very accurate tuning adjustments if needed. The fixed taps allow the primary coil to be electrically varied between 1 and 4 turns.

In this case where the intended experiments are firstly plasma phenomena, it was more important to have easily adjustable taps to flexibly change the primary characteristics, than maintain the need for equal weights of conductor in the primary and secondary coils. Even if the copper turn is not electrically used in the current path of the primary, the electrically unused copper places boundary conditions on the fields of induction, and hence must be factored in for experiments that require this balanced boundary condition from equal weights or volumes of conductor e.g. in achieving very high efficiency in the transference of electric power, and for establishing a strong and extended longitudinal LMD mode in the secondary cavity.

For reference, the equal weights of copper (< 3.0Mc) from primary to secondary calculation is as follows:

Secondary wire length for the 23 turns of RG316 coax = 32.52m

Measured unit weight of RG316 outer braid only: 6.150 kg/km

Secondary RG316 wire weight = 6.150 x 32.52 / 1000 = **0.200 kg**

Secondary wire length for the ^{1}/_{8}” copper tube single turn = 1.41m

Measured unit weight of ^{1}/_{8}” copper tube: 50.3 kg/km

Secondary ^{1}/_{8}” copper tube weight = 50.3 x 1.41 / 1000 = **0.071 kg**

**Total conductor weight of secondary coil = 0.271 kg**

Primary wire length per turn @ 390mm diameter = 1.23m

Primary turn ^{1}/_{8}” copper tube weight = 50.3 x 1.23 / 1000 = 0.062 kg

**Number of turns in the primary required to equal the secondary coil weight: 0.271 / 0.062 ~ 4.4 turns**

If we now factor in the weight of the vacuum variable capacitor copper plates and interconnection of the primary to this capacitor, which constitute the parallel resonant circuit of the primary:

Total approximated weight of copper in the capacitor plates and interconnections ~ 0.125 kg

**Number of turns in the primary required to equal the secondary coil weight, (including primary resonant circuit): **

**(0.271 – 0.125) / 0.062 ~ 2.4 turns**

Two to three turns of the primary is considered an optimum match to the mid-range tuned position of the vacuum variable capacitor at ~ 600pF, and with a coupling coefficient between primary and secondary of ~ 0.2. The primary inter-connections are made from copper plate, and 8 AWG (1600/0.08) micro-stranded silicone coated wire. The same wire is used to connect both primary coils to the generator for push-push, push-pull, and quadrature drive, and forms a good low impedance, low inductance connection for power transfer between the generator and the primary coils.

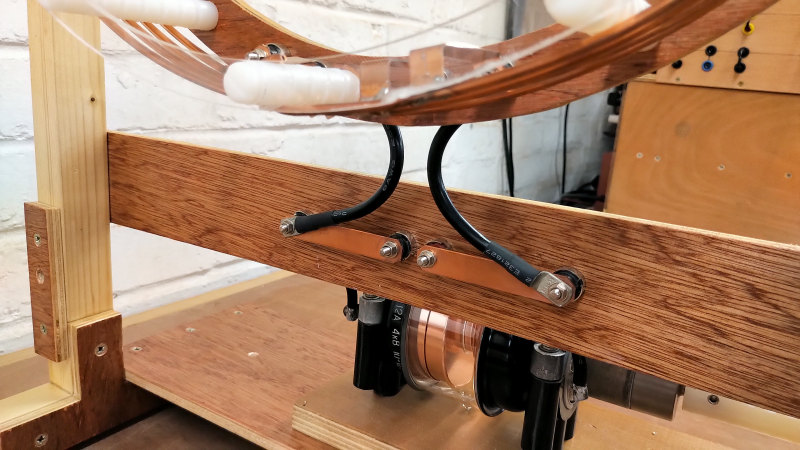

Figures 3 below show some of the construction features of the cylindrical coil design, including the support frame interleave arrangement, the secondary coil windings, the primary coil taps and tuning capacitor mounting, and the primary circuit inter-connections.

The overall design and construction of this cylindrical coil provides a simple yet versatile Tesla coil which can be used in a range of different experiments, including plasma phenomena and as an induction generator, and transference of electric power in a TMT system. By extending with extra coils, or by specifically designed primary coils e.g. equal weights of copper, or a Golden Ratio spiral, the useful range of experimental phenomena can be extended to include high efficiency transference of electric power, and telluric transference of electric power in the far-field. The detail of these experiments, phenomena and measurements will be reported in subsequent posts.

Click here to continue to cylindrical coil input impedance – TC and TMT Z_{11} measurements.
