Transference of Electric Power – Part 1

In this first part we will look at both video experiments and measurements to investigate and demonstrate the transference of electric power via the transmission medium of a single wire, and combined with and without multiple loads. The experiments are undertaken using the flat coils designed, measured, and tested in detail here. Part 1 of this topic is intended to experimentally introduce the transference of electric power, and the various properties, phenomena, and effects that can be measured within such an electrical system when excited using the vacuum tube generator as a feedback oscillator, details here.

A more detailed introduction to the principles of transference of electric power can be found here. The experimental work in this part is intended to investigate and demonstrate aspects of the following:

1. Tuning measurements using a vector network analyser to measure Z11, the small signal ac input impedance for the experimental system, from the perspective of the generator.

2. Tuning the transmitter and receiver to different points to demonstrate different transference phenomena.

3. Single wire transmission and the longitudinal magneto-dielectric (LMD) mode.

4. Tuning to power a load within the single wire transmission line.

5. Tuning to power a load at the output of the receiver.

6. Tuning to establish the LMD mode of transmission between the transmitter and the receiver.

7. Tuning to establish the null point of the LMD mode within the single wire load.

8. Tesla’s wireless transmission of electric power in the near field, using a pair of tuned Tesla magnifying transformers (TMT).

9. Transference of electric power between the transmitter and receiver in the near field.

Figures 1 below show an overview of the experimental arrangement which consists of two flat coils used as transmitter and receiver and joined via the base of the secondary coils by a single wire transmission line with an inline 100W four incandescent lamp load, (4 x 25W 240V pygmy lamps). The transmitter primary is connected to the 811A vacuum tube generator via a matching unit which in this case consists of only a 1200pF vacuum variable capacitor in parallel with the 2 turn copper strap primary. The receiver primary is tuned by another parallel connected 1000pF vacuum variable capacitor which in turn is connected to another 100W four incandescent lamp load. The outer end terminal of the receiver primary is connected directly to RF ground via a low inductance ground strap. The secondary coils of the transmitter and receiver are positioned facing each other on axis 1.5m apart, and are counter-wound to each other in order to produce a balanced and reciprocal cavity arrangement.

The 811A vacuum tube generator is used in this experiment as a tuned plate class-C Armstrong oscillator which derives automatic feedback from a pick-up coil placed close to the secondary coil of the transmitter, and can be clearly seen on the back of the transmitter in figures 1.4-1.6. The advantage of using a self-tuned oscillator as the generator for this experiment is that complete tuning of the system can be easily accomplished simply by adjusting CPT, the primary capacitance of the transmitter, (and for fine tuning CPR the primary capacitance of the receiver). As CPT is adjusted over its range the generator tracks the tuning changes in the overall system allowing very precise and optimum frequency tracking through the various resonant bands of the system.

The dis-advantage of self-tuning the generator in this way, is in the regions where there is very little coupling between the primary and secondary of the transmitter coil, (far from the resonant regions), there is insufficient feedback to the vacuum tubes and oscillation can be unstable or non-existent. To explore these low coupling regions a fixed frequency excited linear amplifier would be the preferred choice, which will be covered in another part. For this part in exploring the transference of electric power via transmission between a transmitter and receiver coil via a single wire transmission line, we are most interested in the resonant regions of the system where the self-tuned oscillator allows for convenient and accurate tracking within these bands.

The first video introduces the experimental setup, instrumentation, and readings, and then looks in detail at the Z11 small signal impedance characteristics for a range of different tuning conditions for both the transmitter and receiver coils, combined with a single wire transmission medium, and both with and without multiple incandescent lamp loads.

Figures 2 below show the detailed Z11 impedance measurements that were presented in the first video, and will be referred to in the consideration of the experimental results after the second video.

The second video demonstrates interesting phenomena and effects relating to the transference of electric power from the vacuum tube generator to the transmitter, and then via the single wire transmission medium through to the receiver coil, and to finally the load at the output of the receiver. Various different modes of transmission are considered which are established by different tuning points of the experiment.

There have been a range of different interpretations as to the nature of wireless transmission of power from a resonant transmitter to a resonant receiver, through the surrounding medium, proposed as early as the late nineteen century by Maxwell[1], Tesla[2,3], Steinmetz[4] and much later by others such as Dollard et al.[5,6,7], Tucker et al. [8], and Leyh et al.[9]. Different sources have suggested different mechanisms for the transfer of power between transmitter and receiver, including the Longitudinal Magento-Dielectric mode, Multiple order magnetic field coupling, and Electric field coupling.

In my research into the transference of electric power so far, I have found most validity in both conceptual and experimental terms from wireless transmission at distances greater than that which can be attributed through near-field induction, (the conventional transformer effect), through the principle of the Longitudinal Magneto-Dielectric (LMD) mode. In my consideration of the results of the experiments presented in this post, I find the LMD principle to most closely account for the observed phenomena and properties surrounding the transfer of electric power through a near-field TMT arrangement.

I consider the experiments presented in this post to be transmission in the near-field, rather than what might ordinarily be considered by conventional antenna theory the mid-range, where the distance between the transmitter and receiver is more than 2-3 times the diameter of the coils, (antenna aperture). In this case the central tuned resonance of the TMT system  is ~2Mc/s, which corresponds to a free-space wavelength of ~150m. Since the coils are connected by a single wire transmission line, and are spaced 1.5m apart, I very much consider this scenario to be near-field transmission since the receiver coil is very much less than a wavelength from the source.

The transfer of electric power in this scenario is as a result of the specific modes formed by the electric and magnetic fields of induction, and hence the transfer of power is “inducted” or “extended”, rather than propagated as would be the case for a transmitting antenna. In subsequent posts I will be presenting experiments on the telluric transfer of electric power where the wireless transmission distances are in the far-field, and are very much greater than the wavelength of the fundamental resonant frequency of the TMT system. Despite the near-field arrangement the transfer of electric power in this system is not via the conventional magnetic coupling of the “transformer effect”.

This was confirmed by removing the single wire transmission and simply terminating both bottom-ends of the secondary coils with a short wire extension, in order to lower the impedance at this end and ensure λ/4  resonation. In this condition, and when tuned over the full available frequency range, no transmission of power took place between the transmitter and receiver coils, even when both were tuned to the same resonant frequency at either the upper or lower frequency. If the conventional transformer effect occurred in the near-field then some detectable power would have been transferred between the generator and receiver load. This clearly shows that transference of electric power in this TMT experimental arrangement requires the transmission of the electric and magnetic fields of induction via a lower impedance path through the transmission medium, (in this case the single wire connection). When both of the short secondary extension wires were then subsequently connected to earth, (either independent dedicated rf grounds, or earth points from the utility supply), power was again transferred between the source and load at the correct tuning.

It is conjectured here that transference of electric power, at the correct point of tuning in this experiment, occurs through establishing the LMD mode of transmission as a standing wave between the transmitter and receiver coils, where a cavity is formed between the top-loads of the two secondary coils. In successive cycles of the generator oscillations electrical energy is coupled from the generator into the cavity. The pressure of the wavefront in the longitudinal mode moves backwards and forwards as it traverses the cavity from the transmitter to the receiver, reflected from the top load of the receiver and back again towards the transmitter where it is amplified or suppressed by coupling from subsequent cycles from the generator. Whether the longitudinal wavefront is amplified or suppressed depends on the tuning of the experiment and hence the longitudinal wavelength in the cavity.

At the correct point of  tuning the amplitude of the wavefront is reinforced by successive cycles from the generator. The magnitude of this longitudinal wavefront reaches an equilibrium in the cavity based on the impedance characteristics of the cavity medium, its tuning, and dissipation of the stored power to both the transmission medium, and to the surrounding environment. The longitudinal wavelength within the medium is longer than that of the generator excitations, which represents a lower frequency of oscillation for the longitudinal mode. This puts the electric and magnetic fields of induction at different phase relationships throughout the length of the cavity, a property of the longitudinal mode that can measured in the cavity region, and is presented in the consideration of the experimental results below.

At the correct point of tuning the di-electric and magnetic fields of induction in the LMD mode form a standing wave in the cavity which results from the longitudinal wavelength, where the boundaries of the cavity are defined by the high impedance, high potential, points at the top-loads of the coils, and one or more null points form inside the cavity. At the fundamental frequency of the LMD mode, (not the same frequency as the fundamental resonance of the secondary coils or the generator oscillations), only a single null will exist in the centre of the cavity, and when the coils are closely spaced in the near-field. At higher order harmonics, and dependent on spacing between the coils multiple null points can form.

Each of the key experimental parts is now considered in more detail, and where appropriate based on the conjecture made above regarding the LMD mode of transmission:

Single wire transmission and the LMD mode

A key feature of the presented experiments in the transference of electric power between the transmitter and receiver is that power is transferred via a single wire which in itself is an unsusual method of transfer within standard electric circuit theory and experiment.

In a standard closed electric circuit current is continuous throughout the circuit with the voltage potential around the circuit dependent on the impedance of the elements and/or transmission lines that make up the circuit topology. The underlying premise is that a circuit has a forward and return path where the impedance is sufficiently low to allow for a “flow” of current from the source around the circuit, and returning to the source. Power is dissipated in the various impedances that make up the circuit according to their characteristics and the voltage and current phase relationship of the overall impedance of the circuit.

Ordinarily introducing a very high impedance, (in principle an infinite open-circuit), will reduce the current in the circuit to such a low-level, and in principle to zero, so that no current can flow around the circuit from and returning to the source, and hence no power is dissipated in that circuit. Even in an rf transmission line the normal transverse mode of transmission assumes a voltage and current distribution long the transmission line based on its distributed impedance, and its matching to the source and load terminations, where the transmission line is based on a closed circuit formed between the source and load in two or more conductive mediums between the source and load.

As can be seen in the videos the four incandescent load can be fully lit where no obvious closed circuit exists. The load is not connected between the outputs of the secondary (topload and base of the secondary), but is rather only connected via the base of a secondary. The other side of the load is left as open-circuit with a short trailing wire. Once again a cavity is formed between the top-load of the transmitter secondary and the open-circuit of the trailing wire, which would enable the LMD mode to establish. The electric and magnetic fields of induction are both present around the boundaries of the single wire, and a longitudinal wavefront is established at the longitudinal frequency in the cavity. At the upper and lower resonant frequency of the secondary energy is coupled from the generator into the cavity, and the longitudinal mode is established along the length of the cavity.

A higher impedance load placed within the electrical cavity at resonance will dissipate power in a transverse mode from the established wavefront when the electric and magnetic fields of induction local to the load are in phase. That is, the induced voltage across the load, and the induced current in the load, are predominantly in phase in the region of the load. In this case energy can then be transferred (induced) from the longitudinal wavefront to the transverse mode, and power will be dissipated in the lamp as both light and heat with a warm yellow colour temperature, as can be seen in the video. Placing the load right at the end of the wire will not light the incandescent lamp at the termination of the cavity, where the voltage and currents induced in the wire are 90° out of phase at the open-circuit termination.

Figures 3 below shows the phase relationship between the voltage and current oscillations of the generator in the primary, and the phase relationship between the voltage and the current at three different points in the single wire section of the cavity. It is conjectured that the changing phase relationship between the induced voltage and currents along the single wire is characteristic of the longitudinal mode established in the cavity, and results in unusual electrical phenomena and characteristics that are measured in TMT experimental systems.

In each figure the traces are as follows:,

Yellow – The voltage across the transmitter primary.

Green – The current through the transmitter primary, calibrated 1A/div.

Cyan – The voltage measured at centre of the single wire transmission line.

Red – The current measured through the single wire transmission line, calibrated 1A/div.

Each frequency 1.75, 1.94, and 3.32 Mc/s are measured at three different points in the single wire section of the cavity:

SWC1 – At the bottom-end of the transmitter secondary.

SWC2 – In the middle of the single wire.

SWC3 – At the bottom-end of the receiver secondary.

It is important to note from these measurements the varying change in phase relationship between the voltage and current at the transmitter, centre, and receiver ends of the single wire, (cyan and red trace), for tuned power in the receiver load, figures 3.4, 3.5, and 3.6. It is conjectured that this varying phase change across the single wire length between the voltage and the current, (~1.94Mc/s), which is hardly present when not correctly tuned for the transference of electric power (~1.75Mc/s and 3.32Mc/s), is indicative of a standing wave resonance of the LMD mode in the cavity, a cavity which has been formed by two coils that are matched at resonance in the TEM mode, and joined by a transmission medium. It is the combination of matched resonance in the TEM mode at the coils, and a tuned standing wave of the LMD mode that leads to the transference of electric power with very low loss between the generator and the final receiver load.

Tuning to power a load within the single wire transmission line

This experimental point is shown in figures 1.1 and figures 2.4, 2.7-2.9. Interestingly this condition is little different to the open-circuit terminated single wire case discussed above. However, now both transmitter and receiver are connected together via the single wire transmission line which also contains an incandescent lamp load. The single wire lamps could be tuned to light fully at either the lower or upper resonant frequencies of the combined secondary coils, with no or very little power dissipated in the final load at the receiver primary.

Once again a cavity is formed between the two top-loads of the transmitter and receiver secondaries, and through the single wire transmission line, the LMD mode is present, and there is a varying phase relationship between the voltage and current measured in the single wire. The  mis-match in tuning between the transmitter and receiver means that, whilst the LMD mode is always present, it is not tuned to form a standing wave in the cavity. There are no detectable null points along the single wire and the neon lamp at the top-load of the receiver is not lit, showing that there is no high-potential at the top-end of the receiver coil. In this case the TMT transmission system is not tuned between the transmitter and receiver and so no power is being coupled through the receiver coil to its load. The system appears almost identical to the open-circuit single wire case above.

Energy is being coupled at the secondary resonant frequency from the generator into the transmitter secondary in the transverse mode, and the mis-match in tuning between the high-Q transmitter and receiver means that energy is not reaching the receiver coil but rather being consumed in the load in the single wire. This is further demonstrated in the video when the receiver secondary is unplugged from the single wire the lamps of the load in the single wire stay lit, they do change intensity slightly as the tuning changes, but can be returned back to full brightness by slight adjustment at the transmitter primary capacitor.

In summary, the transference of electric power from the generator to the single wire load occurs at the lower or upper resonant frequency of the transmitter coil, and is largely independent of the mis-matched termination at the other end of the single wire, whether that be a simple open-circuit, or short-circuit to ground, or another mis-matched resonant circuit such as a TMT receiver.

Tuning to power a load at the output of the receiver

This experimental point is shown in figures 1.2 and figures 2.5, and 2.6.  With careful tuning there is a very narrow band, as seen on the video, where the high-Q TMT transmitter and receiver are tuned very accurately to one another, and power can be transferred directly between the transmitter and receiver via the single wire transmission, and with very little power dissipated in the single wire or its load. In this experimental setup the tuned frequency at the generator is between ~1.92 – 2.05 Mc/s to demonstrate the transference of electric power between generator and final load.

In this scenario the LMD mode is tuned in the cavity to form a standing wave, a null point is present at the centre of the path length of the cavity, which in this experiment where the single wire load was placed. Both top-loads are at maximum potential indicating that the cavity is in the fundamental resonant frequency of the LMD mode, that is nλLMD/2,  where n=1 and there is a high potential point at the transmitter top-load, a zero potential null point in the single wire, (at the single wire load), and a high potential point at the receiver top-load.

Overall this is now the special condition where firstly, the transverse electromagnetic mode (TEM) is matched independently for both the transmitter and receiver coils, so they are both able to couple maximum energy, the transmitter from the generator, and the receiver to its load, at the same resonant frequency. This is secondly combined with the LMD mode formed in the secondary coil of the transmitter TMT, and tuned within the cavity of the single wire transmission medium to form a standing wave, where in its fundamental mode a single null point exists in the centre of the single wire transmission medium. The combination of the TEM and LMD modes both correctly tuned, leads to an inter-dependent balanced condition within the electrical system, where transference of electric power between the generator and load can occur with minimal loss.

In principle, transmission in this mode could cover great distances where an LMD standing wave is established in a transmission cavity where there are many null points along the single medium of the conductor, whether that be a wire, the earth, or other lower impedance or resonant medium. Again in principle with the correct setup of the TEM and LMD modes in the complete system very little power need be lost in the transmission medium, which can be tuned correctly by detecting the null points in the medium, and the varying phase relationship of the measured voltages and currents in the medium, which appears at this stage to be an indication of the LMD mode.

Summary of the results and conclusions so far:

1. In consideration of the experimental results presented and phenomena observed, it is conjectured that the LMD mode is established in a resonating coil when a cavity is formed between the top-load of the coil, in this case an open-circuit with a neon indicator bulb, and the outer boundary point of the circuit connected to the bottom-end of the coil. The LMD mode enables transmission of the electric and magnetic fields of induction together around the boundary of the single transmission medium, in this case around the outside of the single wire. The magnetic and di-electric fields of the LMD mode are in the same plane of travel and hence constitute a longitudinal pressure wavefront that traverses the cavity reflecting from the high impedance boundaries at each end and establishing an LMD wave with wavelength distinct from the transverse resonant wavelength of the transmitter and receiver secondary coils.

2. When the LMD mode is not established as a standing wave within the cavity of the single transmission medium the energy coupled from the generator into the transmitter coil by transverse induction is consumed by a higher impedance load in the single transmission medium, or with inadequate load in the transmission medium will be discharged to the surrounding environment through streamers at the high potential top-load.

3. When an LMD standing wave is established in the cavity, and the high-Q transmitter and receiver coils are both resonating in equilibrium with each other in the very narrow matched band (~1.92Mc/s – 2.05Mc/s) power is transferred directly from the generator to the final load at the receiver, with very little energy consumed in the single transmission medium

4. An LMD standing wave can be established in a cavity that is geometrically and electrically reciprocal at each end, e.g. with an identical TMT transmitter and receiver designed to resonate at the same transverse frequency, which causes the longitudinal pressure wave to be reflected from each end of the cavity.

5. Where the wavelength of the LMD mode is a whole number of half-wavelengths nλLMD/2, amplification of the LMD mode will occur in the transmitter until a dynamic equilibrium is established within the electrical system and with the surrounding medium. In this case the null point/s of the standing wave can be measured in the single transmission medium, and tuned carefully either side of this point will show the null point to move towards either end of the single transmission medium, before collapse of the standing wave at the coil boundaries.

6. The LMD standing wave mode could be indicated by a varying phase change between the voltage and current waveforms measured along the length of the transmission medium. It is conjectured that this phase change is preliminary evidence of the amplified longitudinal mode established in the cavity.

7. The combination of the TEM and LMD modes both correctly tuned, leads to an inter-dependent balanced condition within the electrical system, where transference of electric power between the generator and load can occur with minimal loss.

The preliminary results for the transference of electric power in the near-field indicate that considerable more study is required on the various transmission modes present in the TMT system, and particularly a more detailed measurement and study of the phase relationships of the electric and magnetic fields of induction in the transmission medium, and the difference in the resonant wavelengths of the transverse and the longitudinal modes. These two modes appear to interact constructively and in an inter-dependent way when tuned for the optimal transference of electric power between the generator and the receiver load.

Click here to continue to part 2 on the transference of electric power, where the experiment is powered by a spark gap generator, and the differences explored and contrasted to the results obtained here with a single frequency feedback oscillator.


1. Maxwell, J., A Dynamical Theory of the Electromagnetic Field, Phil. Trans. Royal Society, pg459-pg512, January 1865.

2. Tesla, N., System of transmission of electrical energy, US Patent US645576A, March 20, 1900.

3. Tesla, N., Colorado Springs Notes 1899-1900, Nikola Tesla Museum Beograd, 1978.

4. Steinmetz, C., Elementary Lectures on Electric Discharges, Waves and Impulses, and Other Transients, McGraw-Hill Publication, 1911.

5. Dollard, E., Condensed Intro to Tesla Transformers, Borderland Sciences Publication, 1986.

6. Dollard, E. & Lindemann, P. & Brown, T., Tesla’s Longitudinal Electricity, Borderland Sciences Video, 1987.

7. Dollard, E. and Energetic Forum Members, Energetic Forum, 2008 onwards.

8. Tucker, C. & Warwick, K. & Holderbaum, W., A Contribution to the Wireless Transmission of Power, Electrical Power and Energy Systems 47 p235-242, 2013.

9. Leyh, G. & Kennan, M., Efficient Wireless Transmission of Power Using Resonators with Coupled Electric Fields, Nevada Lightning Laboratory, 40th North American Power Symposium, 2008.




Transference of Electric Power – Part 2

In this second part on the transference of electric power we take a look at the differences that arise when a spark gap generator (SGG) is used as the power source for the experiment rather than a single frequency oscillator as used in part 1. It is recommended to study  part 1 before this second part, in order to gain an underlying understanding of the overall experiment, phenomena, results, and suggested interpretation of the experimental results, that are characteristic to the practical investigations in the transference of electric power.

Unlike a single frequency oscillator or linear amplifier generator, a spark gap generator produces a very broad range of frequencies which result from the abrupt and impulse-like discharge that occurs at the spark gap. Frequencies generated by such a spark gap discharge, range from the very low in the 10s of Hz, all the way up to 100s of MHz, and beyond into GHz frequencies. With such a wide frequency band the stored energy available in the tank capacitors, which are charged at each half-cycle of the HV supply, is distributed across this wide band leading to two significant factors. Firstly that considerably less energy is available from the source at the resonant frequency of the transmitter coil, and secondly, tuning of the TMT transmission system has considerably less effect on the transference of electric power between the generator source and the receiver load.

The experimental work in this part is intended to investigate and demonstrate aspects of the following:

1. Tuning measurements using a vector network analyser to measure Z11, the small signal ac input impedance for the experimental system, from the perspective of the spark gap generator.

2. Tuning indifference when powering a load either in the single wire transmission line or at the output of the receiver.

3. Reduced power available in the single wire transmission line.

4. Reduced power available in the receiver load.

5. Tesla radiant energy and matter phenomena.

6. Transference of electric power between the transmitter and receiver in the near field.

Figures 1 below show an overview of the experimental arrangement which consists of two flat coils used as transmitter and receiver and joined via the base of the secondary coils by a single wire transmission line with an inline 60W four incandescent lamp load, (4 x 15W 240V pygmy lamps). The transmitter primary is connected to the Spark Gap Generator via a matching unit which consists of two compound series tank capacitors, shunted 4 x 1B22 hydrogen-argon spark gap modulator tubes, and a 1200pF vacuum variable capacitor in parallel with the 2 turn copper strap primary.

The receiver primary is tuned by another parallel connected 1000pF vacuum variable capacitor which in turn is connected to a 50W two incandescent lamp load. The outer end terminal of the receiver primary is connected directly to RF ground via a low inductance ground strap. As in part 1 the secondary coils of the transmitter and receiver are positioned facing each other on axis 1.5m apart, and are counter-wound to each other in order to produce a balanced and reciprocal cavity arrangement.

Figure 2 below show the schematic for the transference of electric power experiment powered by the SGG. The high-resolution version can be viewed by clicking here.

The principle of operation and matching requirements are somewhat different between the vacuum tube generator (VTG) and the SGG. In the VTG maximum power transfer between the generator and primary is accomplished when the impedance of the primary resonant circuit is equal to the  combined vacuum tube internal impedance, when oscillating at the designed and configured operating point, (class C amplifier), for the tuned primary frequency, and run in CW (continuous wave) mode. In this case the primary circuit is not arranged to resonate at the same frequency as the secondary, where oscillating primary currents would be far too large and lead to destruction of the vacuum tubes. Rather the correct impedance match between the primary and tube oscillator facilitates maximum transfer of power from the non-resonant tube tank circuit to the tuned primary circuit, whilst keeping vacuum tube power dissipation under the maximum combined rating for the tubes.

In the SGG case it is in principle optimal to arrange the resonant frequencies of the primary tank circuit, and the secondary coil to be the same. In this case bursts of very large and maximal oscillating currents are generated in the primary tank circuit, which in turn result in strong magnetic coupling to the secondary circuit, and hence maximum power transfer between the resonant primary tank, and the secondary resonant coil. In practice matched primary tank and secondary coil resonant frequencies cause considerable operating issues when running, as the very high oscillating currents, in the high-Q low impedance primary, result in a very aggressive, unstable, and erratic spark discharge. The de-tuning of the circuit, by deliberate mis-match of the primary tank circuit resonant frequency and the secondary resonant frequency, reduces the Q considerably of the primary, reduces slightly the coupling between the primary and the secondary, whilst considerably stabilising the spark gap discharge to be suitable for experiments in the transference of electric power through a high-Q TMT transmission system.

In the case where a Tesla coil is being used for maximum streamer discharge, it is accepted as best practice to match the primary tank resonant frequency as close as possible to the secondary coil resonant frequency. Here maximum energy is coupled into the secondary and dissipated through the top-load accumulator. In this case the primary frequency is usually de-tuned slightly below the secondary frequency to maximise power transfer during streamer discharge, which leads to very white-hot powerful discharges. For example for a coil arranged to resonate with suitable top-load at 1.7Mc/s the primary resonant tank circuit would be tuned to resonate between ~ 1.5-1.6Mc/s, (~10% lower to compensate for secondary frequency drop on discharge). This case requires a very powerful and robust spark gap that will operate very aggressively, unstably, and producing large amounts of heat, light and noise.

In the case for a TMT transmission system using two or more Tesla coils matched and tuned together in a high-Q narrow bandwidth arrangement, and connected with a single wire and operated in a balanced LMD transmission mode, the primary resonant tank frequency is optimally arranged to be lower in frequency than the secondary resonant coil frequency. In this case there is only a small measured difference in total power being transferred from the generator to the final receiver load as a result of the deliberate primary resonant tank and secondary coil resonant frequency mis-match. For example for a coil arranged to free resonate into a single wire transmission line at 1.7Mc/s the primary resonant tank circuit would be tuned to resonate between ~ 1.0-1.3Mc/s.

The 1B22 hydrogen-argon spark gap tubes were shunted out of the circuit for experiments in the transference of electric power to the receiver load, as their higher internal resistance reduces the primary currents, causing a reduction in the total transmitted power. The shunts are made from copper sheet which remove the tubes from the circuit without increasing the inductance of the primary tank circuit.  In experiments relating to Tesla’s radiant energy and matter it is possible to obtain improved results, (amplified phenomena), when the 1B22 tubes are included in the circuit. It is conjectured that the slight dioding action[1,2] as a result of the ionizing radioactive (Radium Ra-226) trigger element, and the improved pulse response of the primary tank circuit, improves the uni-directional energy supply from the tank circuit to the TMT system. This improved uni-directional energy supply increases the intensity of the LMD mode wavefront in the single wire cavity, amplifying radiant energy and matter phenomena.

A correctly triggered and functioning 1B22 will emit a dark purple spark discharge within the aluminium can of the cathode terminal, which is quickly quenched by the rarefied hydrogen-argon gas mix. A defective 1B22 with a leak to air will still work as a spark gap but will generate a brighter green-yellow discharge as aluminium is combusted from the cathode surface. The discharge sustains for longer causing considerable burning of the electrodes, and rapid over-heating causes distortion of the glass tube, with finally destruction of the electrodes.

The following video introduces the experimental setup, instrumentation, and readings, and looks in detail at Z11 the small signal impedance characteristics of the experiment from the perspective of the spark gap generator. It concludes with a range of experiments in the transference of electric power using a spark gap generator, combined with a preliminary introduction to Tesla’s radiant energy and matter experiments.

Figures 3 below show the detailed Z11 impedance measurements that were presented in the video, and will be referred to in the consideration of the experimental results.

Figures 4 below show the oscillating voltages and currents in the primary transmitter tank circuit, and also those measured at the single wire load. In both the green and red traces the current amplifier is calibrated at 50A/div, showing the large oscillating currents that occur in the primary, and those transferred to the burst in the secondary.

The principle of operation of the transmitter coil primary tank circuit is explained in detail in the post Spark Gap Generator – Part 2. In fig. 4.2 the current (red) in the single wire medium has become far more impulse-like in nature, rather than the oscillating sinusoidal established in the primary coil ring-down as the tank capacitors discharge in the series resonant tank circuit. It is conjectured that these impulse-like currents may be indicative of the burst wavefront constituting the LMD mode, within the cavity formed between the transmitter and receiver coil top-loads. It may also indicate more clearly why it is possible to observe radiant energy and matter phenomena more easily in a SGG driven TMT system, compared to a VTG or linear amplifier driven TMT system. That is, the nature of the burst currents generated in the primary resonant tank circuit by the SGG generator lend themselves more readily, when induced into the secondary cavity, to the LMD mode in the form of impulse-like, uni-directional bursts. These more uni-directional bursts in turn lead to an intensified wavefront in the cavity and the clearer observation of Tesla’s radiant energy and matter phenomena. This experimental area will be explored in much more detail in subsequent posts, but for now serves as an empirical introduction to these fascinating phenomena.

Fig. 4.1. shows the oscillating voltage and currents generated by the SGG in the primary resonant tank circuit. The oscillating currents (green) are a product of the stored energy in the tank capacitors repeatedly transferred backwards and forwards between the tank capacitors and the inductance of the primary coil. As the stored energy is consumed by transfer to the secondary circuit, and by dissipation as heat, light, and noise in the spark gap, and the series resistances of the primary tank circuit, the envelope of the primary current decays until all stored energy in the current cycle is expended. The oscillating nature of the current when transferred from the primary to the secondary tends to cause “dragging” or “smearing” of the LMD wavefront in the secondary cavity reducing the potency and impact of the pressurised wavefront.

In the most ideal case the wavefront would constitute a single pulse of very large amplitude and with very short pulse width, resembling as closely as possible a true impulse function. This pulse wavefront would traverse the cavity in a uni-directional manner with no reflections or dispersion leading to a singular and positive acting pressure wave with both the di-electric and magnetic fields of induction coherently in phase. In this ideal case the transfer of electric power could be 100% between transmitter and receiver, or if radiant energy phenomena are so arranged by a suitable load or emitter in the single wire transmission medium of the cavity, 100% wireless transfer of electric power could be arranged between many points. The intense radiant energy burst from the strong wavefront may also generate a wide range of unusual and hitherto unexplored electrical and matter phenomena, which may in turn also assist in the experimental exploration of the displacement of electric power, the hidden underlying coherent guiding principle of the undifferentiated electric and magnetic fields of induction.

This most ideal case requires that in the primary tank circuit all the energy stored in the tank capacitor per cycle is transferred to the secondary within the first half-cycle of the ring-down. This would create a single pulse from each cycle where all energy available in the tank circuit is transferred to the secondary, in effect driving the primary with a pulse generator. In order to do this it would be necessary to quench the spark gap after the first half-cycle of the discharge, and also ensure that the impedance of the primary circuit was sufficiently low that all the stored energy in the tank could be discharged in this first half-cycle. Both of these requirements present very challenging practical implementations, and will be explored in more detail in subsequent posts.

Tank circuit capacitance optimisation

In the current primary circuit the tank capacitance was adjusted in three different configurations in order to find the optimum operating point for the experiments in the transference of electric power powered by the SGG. The circuit diagram in figure 2 shows the arrangement of the tank capacitor in these three configurations:

1. 2.3nF 16kV from two series MMC units of four capacitors each. This is the tank capacity used in the video experiment and is very stable with only a very small reduction in the amount of power transferred to the receiver load. From figs. 3.3 and 3.4 the resonant frequency of the series primary tank at M1 is 1.09Mc/s. Good stable operation could be established up to ~800W.

2. 1.9nF 20kV from two series MMC units of four and six capacitors respectively. This tank capacity increased slightly the amount of power transferred to the receiver load over configuration 1, but the unbalanced capacity either side of the primary coil, (4 cap. unit one side, 6 cap. unit the other side), was found to lead to more instability in the spark discharge including “popping” and material ejection at the electrodes at powers only up to 500W. The resonant frequency of the tank circuit in this configuration is ~ 1.2Mc/s

3. 1.6nF 24kV from two series MMC units of six capacitors each. This was found to be the lowest practical tank capacity when running at powers up to 1kW. Lower than this the spark gap became too aggressive and erratic for good accurate measurements and stability in the transference of electric power. The resonant frequency of the tank circuit in this configuration is ~ 1.3Mc/s

Overall, configuration 1 was selected for most experiments in the transference of electric power, providing the best balance between longer-term stable and reliable operation of the spark gap, and with acceptable energy transfer to the transmitter secondary coil.

The other feature of the tank circuit was to minimise the inductance of the connections and components. The optimum condition is for all the current in the tank circuit to contribute to generating a magnetic field only within the primary coil itself, which maximizes the magnetic field coupling to the secondary coil. In practise magnetic fields are also created around the inductance of the tank circuit connections and components, storing some of the available tank circuit energy, and reducing the magnetic field generated within the primary coil. The inductance of the tank circuit components is kept minimum by keeping connection wires short and made from large many stranded conductors, by using copper busbars, and solid aluminium or copper mounting blocks for larger components. In the circuit diagram of fig. 2 the low inductance parts of the tank circuit extend from the spark gap to the primary coil and are indicated by thicker connecting wires.

Tuning indifference when powering a load

One of the most notable differences between the experiments in part 1 and 2, is that power dissipated in the both the single wire load and the receiver load varies only slightly with large changes to the transmitter and receiver primary tuning capacitor. The transmitter tuning capacitor was varied over the range 20-1200pF which in figs. 3.1 and 3.2 shows very large changes to the frequency spectrum of the TMT system. However when powered from a properly adjusted spark gap generator the bulbs in the single wire transmission medium remain well-lit over much of the tuning range. This is in stark contrast to part 1 where power dissipated or transferred in the various loads were very dependent on the tuning condition of the transmitter and receiver, and to the matching conditions of the VTG to the primary of the transmitter.

In fig. 4.2 we see that currents in the single wire transmission medium are much more impulse-like and consist of many narrow pulse excitations and rapid bursts. The spectral content of this time-domain signal will be very wide with energy distributed over a very broad-bandwidth, and consistent with the properties of the spark gap stimulus in the primary circuit. With such a wide bandwidth of frequencies present at the single wire load we would expect the bulbs to be illuminated irrespective of the tuning in the transmitter primary. Many frequencies are being transferred from the primary to the secondary circuit which is characteristic and typical of the properties of this experiment when driven from a spark gap based generator.

Given the above as a broad comparison with the experiment in part 1, tuning around the upper and lower resonant frequencies of the flat coil transmitter causes a slight increase in brightness for the single wire load, showing that more energy is selectively coupled at these frequencies from the generator as would also be expected from part 1, and from the frequency characteristics measured in figs. 3.1-3.4.

Reduced power in the single wire load and receiver load

The spread of energy over a very wide bandwidth results in less energy being dissipated in both the single wire load and also in the receiver load, as compared the single frequency oscillator experiment in part 1.

1. In the case of the single wire load, the bulbs can still be lit to almost full brightness since all the power from all transferred frequencies is being dissipated in this load. The bulb brightness showing the average power dissipation over many bursts coming from the spark gap generator. At an input power of 300W to the HV supply it was possible to illuminate the single wire load to around two-thirds of its maximum rating, so ~45W. At 500W the load could be illuminated fully to ~60W.

2. In the case of the receiver load, much less power could be coupled into this load even when tuned correctly as a complete TMT system, as shown in figs. 3.3 and 3.4. The single wire load had to be first removed to prevent power dissipation at this load, and then the receiver load could be illuminated to maximum ~0.5 of its total power e.g. about 25W. From the wide-band of frequencies available in the single wire transmission medium only a very narrow range at the resonant frequency of the receiver flat coil are transferred from the single wire to the receiver load. It should however be noted that the receiver bulb loads where illuminated dimly over the entire tuning range of the transmitter primary and the receiver primary. This again shows that a little of that wide bandwidth of energy is coupled to the receiver irrespective of the tuning, again tuning indifference based on the spectral content of the source energy.

In this case the spark gap generator is far from optimal for the transference of electric power, where for the same input power as in part 1, less energy is transferred to the single wire load, and very much less energy can be transferred to the receiver load. This proves to be the case even when the TMT system is optimally tuned as shown in figs. 3.3 and 3.4, and by further comparison with the optimal tuning results in part 1 of this experiment.

Tesla radiant energy and matter phenomena

These phenomena form some of the most interesting and unusual aspects of this TMT experiment using a spark gap generator. Whilst these effects can also be observed in the same experiment using a single frequency oscillator, linear amplifier, or other oscillating source they are much reduced in intensity when compared with a spark gap generator, burst oscillator, pulse generator, or properly designed and operated impulse or displacement generator. The exploration of these phenomena in this experiment is only as an introduction to these effects, and properly requires a much more detailed experimentation and consideration, which will be presented in a subsequent post along with very much magnified phenomena results.

The preliminary phenomena observed in this experiment include:

1. Attracting metals to the surface of an incandescent bulb in the single wire cavity, where the bulb acts as an emitter of radiant energy.

2. Amplification or intensification of a radiant energy event by interaction with a living organism, (human hand).

3. Charging a capacitor with radiant energy by bringing it close to the emitting bulb.

4. Radiant matter pressure waves emanating from the emitting bulb and impacting on a living organism, (human hand).

It should be noted here that improving the uni-directional pulse nature of the generator system by, for example, including components such as 1B22 spark gap modulator tubes in the tank circuit, early magnetic quenching of the spark discharge, or other impulse/pulse/burst generation methods, considerably magnifies the observed phenomena. It is also important to note that these types of phenomena are best observed when  a cavity has been established using a resonant transformer, such as a Tesla coil, and where a longitudinal pressure wavefront is established within the cavity, preferably in an LMD type mode, or ideally with direct displacement.

Summary of the results and conclusions so far:

The transference of electric power experiment using the tuned TMT flat coil system has produced considerably different results when powered using a spark gap generator, as compared with the single frequency feedback oscillator in part 1. The key differences and results include the following:

1. Tuning indifference occurs due to the wide spectral bandwidth of the energy transferred from the generator to the final receiver load, and impacting on all parts of the TMT transmission system between these points.

2. Considerably reduced levels of transferred electric power both to the single wire transmission medium load, and the receiver load, for the same nominal input power to the HV supply of 300W. Again this is attributed to the diffuse spectral energy content when a wide bandwidth generator is connected to a narrow bandwidth high-Q TMT transmission system.

3. Tank circuit tuning configurations have shown that a de-tuned primary and secondary resonant frequency in the transmitter primary leads to the best balance between transferred electric power, and stable, consistent, and long-term reliable operating conditions.

4. Radiant energy and matter phenomena have been observed in the experiment, and indicate components and optimizations, including different generator configurations, that will intensify and maximise these unusual observations.

5. Generator configurations and types that improve the impulse/pulse/burst nature of the transferred energy may intensify radiant energy phenomena by generating a more uni-directional pressure wavefront in longitudinal system, which may also provide additional insight into the preliminary investigations into the displacement of electric power.

The results for the transference of electric power in the near-field using a spark gap generator indicate that this form of generator is not well suited for energy transmission in the narrow bandwidth high-Q TMT system. A very large and robust spark gap generator would be required to transfer adequate power from generator to load, with considerable losses at the spark gap, huge electromagnetic interference to the surrounding medium, and invasive and unstable operating conditions. However this form of generator does appear to lend itself to phenomena that arise from the longitudinal pressure wavefront generated in the cavity of a resonant transformer, such as a Tesla coil. As such it is conjectured that this form of generator may be useful in the exploration of displacement, the hidden underlying coherent guiding principle of the undifferentiated electric and magnetic fields of induction.

Click here to continue to the next part, looking at High-Efficiency Transference of Electric Power.


1. Dollard, E. & Lindemann, P. & Brown, T., Tesla’s Longitudinal Electricity, Borderland Sciences Video, 1987.

2. Dollard, E. and Energetic Forum Members, Energetic Forum, 2008 onwards.




High-Efficiency Transference of Electric Power

In this post we take a preliminary experimental look at the transference of electric power using a cylindrical coil TC and TMT, energised using a linear amplifier generator, and also the high power transfer efficiency that can be achieved in a properly matched system. The setup, tuning, and matching of the linear amplifier is covered in detail in the video experiment where a 500W incandescent lamp can be fully illuminated at power transfer efficiencies over 99% in the close mid-field region. The power is shown to be transferred to the receiver through a single wire between the transmitter and receiver coil through the longitudinal magneto-dielectric mode, and not through transverse electromagnetic radiation or through direct transformer induction. This high-efficiency, very low-loss transference of electric power is possible as the dielectric and magnetic fields of induction are contained around the single wire.

It is also demonstrated that more than 500W of power can be transferred through a single wire no thicker than a human hair, a 40AWG (0.08mm or 80 microns) nickel plated copper wire, where the power transfer efficiency could be measured up to 100% according to the limits of experimental accuracy of the measurement equipment. Power transfer of this order through such a thin wire is again possible as the dielectric and magnetic fields of induction are contained or guided around the single wire. Removal of the single wire from the receiver end prevents any power transfer to the receiver, which shows that when driven by a linear sinusoidal generator, a lower impedance transmission medium, (in this case the single wire), is needed to guide the induction fields between the transmitter and receiver coils.  The experiment presented in this post is the preliminary starting point for a more detailed and extensive study of power transfer efficiency over greater distances in the mid-field region with much longer single wires, and in the far-field with a Telluric transmission medium.

The video experiment demonstrates and includes aspects of the following:

1. Linear amplifier generator setup, matching, tuning, and operation to drive a cylindrical TC and TMT system.

2. Measurement and confirmation of the series and parallel modes of resonance for a balanced TC, against the Z11 impedance results, using the generator exciter and an oscilloscope.

3. Transference of electric power from the generator exciter unit, to a single wire transmission medium incandescent lamp load up to 120W.

4. Transference of electric power from the linear amplifier generator to a 500W incandescent lamp load at the TMT receiver output, and subsequently to two parallel 500W lamp loads.

5. Longitudinal magneto-dielectric (LMD) mode measurement through central null with a fluorescent lamp, and mode interference patterns with an ultraviolet lamp.

6. Transference of electric power efficiency measurements up to 99% using an AWG12 single wire between the TX and RX coils.

7. Efficiency measurements up to 100% using an AWG40, 80 micron (0.08mm), 60cm long, single wire between the TX and RX coils.

Video Notes: The maximum calculated power transfer efficiency when using the 12AWG single wire in the video was 99%, and not 99.6% as stated in the video. During the introduction the small signal input impedance characteristics Z11, are displayed for a short period in preparation for the subsequent presented linear amplifier setup. These characteristics can also be viewed in Fig. 3.1 below.

Figure 2 below shows the experimental system circuit diagram, followed by an overview of the linear amplifier generator components. Click here to view the high-resolution version.

1. The exciter is a Kenwood Trio TS-430S 100W HF amateur radio transceiver. This era of transceiver has digital frequency synthesis, a semiconductor power amplifier, AM and FM modulation, and is easily modified to extend its capabilities. In this case it has been modified to transmit on all frequencies across its tunable range, which makes it into a high-power, up to 120W, bench-top signal generator with modulation capabilities. The transceiver system is not connected to any elevated radiating antennas, and hence will not cause out-of-band interference.

2. The exciter is connected directly to a Kenwood TL-922 1kW linear amplifier which is a vacuum tube based, (dual Eimac 3-500Z), HF power amplifier. This linear amplifier has π-network matching circuits on both input and output. Slightly out of band operation prevents running this linear amplifier at the full 1kW when in the fully matched condition. The output of the linear amplifier is connected through an MFJ-804D digital power and SWR meter to monitor the match at the output of the linear amplifier.

3. The output of the SWR meter is connected to a Palstar AT5K 5kW antenna tuner which handles the impedance transformation from the 50Ω output of the linear amplifier to the ~ 7.5Ω input resistance RS. The AT5K is a T-network matching unit, with input and output continuous variable capacitors, and a continuous variable roller inductor. In balanced output mode a internal 4:1 balun is present at the output of the unit, which further extends the range of possible impedance matching. This unit is capable of tuning a very wide impedance to the 50Ω system impedance, and is required for safe and optimum performance of the linear amplifier when driving TC and TMT systems.

4. The output of the AT5K can be switched to bypass which connects to a Palstar DL2K 2kW 50Ω dummy load which is used to initially tune the output of the linear amplifier for maximum power output at the exciter frequency. When this is completed the AT5K is switched back to balanced tuned output connected to the primary circuit of the transmitter cylindrical coil. Between the output of the AT5K and primary coil is a Bird 4410A Thruline power meter with a 450kc – 2500kc 10kW slug, for measuring the real power actually supplied to the transmitter primary. Between the output of the receiver primary circuit and the 500W incandescent lamp is a second Bird 4410A Thruline power meter with the same rated slug.

In measurements for high-efficiency where the final result is a ratio of the output power to input power, calibration of the key measurement instruments becomes critically important to ensure the highest levels of accuracy and confidence in the measured results. In this case the Bird Thruline power meters at the input and output primary coils were calibrated simultaneously inline with each other, with the actual slugs to be used during the experiment, and on the range that was to be used to make the efficiency measurements.  The calibration procedure was as follows:

1. 500W of output power was provided from the linear amplifier generator simultaneously through the two Bird watt meters in series and terminated at the Palstar dummy load. Interconnections were kept to short BNC cables.

2. Both watt meters were first zeroed and then set to scale 10, which for the 10kW 450-2500Kc slug with element factor 100, results in a meter full scale reading of 1000W.

3. With 500W of power provided from the generator to the dummy load both watt meters were adjusted to read the same needle position on the meter scale at 500W. The operation was repeated multiple times with the power being turned-off and reapplied to confirm.

4. The series connection of the meters was then reversed to average out any insertion losses, and step 3 repeated to confirm agreement of the readings, with very slight adjustment to the calibration of each meter for optimal agreement in both steps 3 and 4.

In this way the meters were both calibrated for 500W input power direct comparison on a single range, and with a limit of experimental error of <0.5%. Due to the analogue nature of the meters, readings during the experiment needs to be done carefully and repeatedly in order to minimise errors due to estimation of the needle position when in-between minor graticule marks. It was determined overall that power efficiency measurements can be made by this method within an error limit of ±1%.

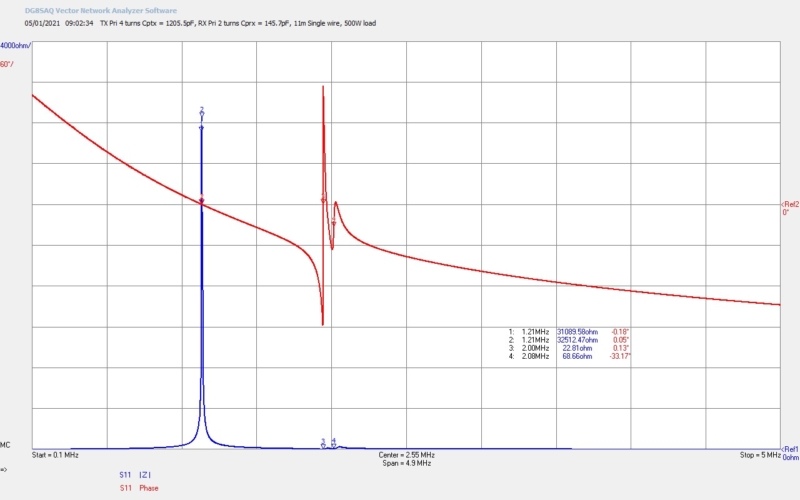

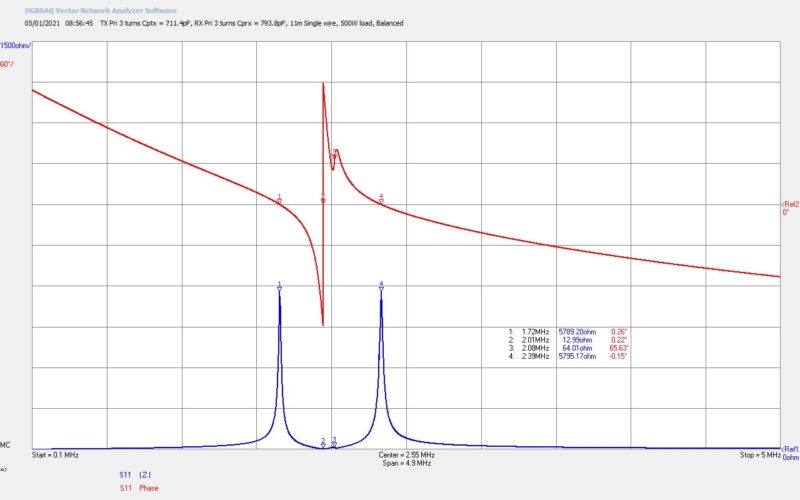

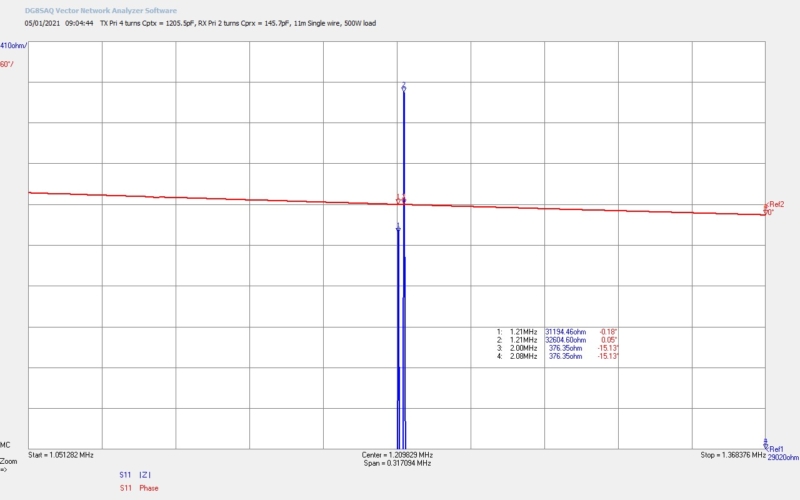

Figures 3 below show the key Z11 impedance measurements that relate to different configurations of the experimental apparatus that were used in the video experiment, along with a consideration of their analysis and characteristics relating to the most important phenomena.

Fig 3.1. Shows the small signal input impedance Z11 for the starting point of the experiment, (also shown on the video), for the transmit cylindrical coil only with a single wire extension that includes a 100W incandescent load. The impedance characteristics consist of the three key points, as explained in detail in the post Cylindrical Coil Input Impedance – TC and TMT Z11. In this experiment the linear amplifier generator was initially tuned to marker M2 the series mode resonance at 2.19Mc. After confirming the Z11 measurements, using an oscilloscope to maximise the voltage output of the secondary, the generator was set at 2.20Mc for the start of the practical experiments. Markers M1 and M3 are the parallel mode resonant points for the transmit Tesla coil, at 1.89Mc and 2.68Mc respectively. In this case the parallel modes have been balanced between the primary and the secondary, in order to maximise coupling through the series mode to the parallel modes, and hence from the generator to the LMD mode in the cavity formed in the secondary coil and single wire extension. The series resonant mode at M2 is suitable for driving the coil using a linear amplifier as the input impedance is minimum, 12.5Ω @ 2.19Mc, which can easily be matched to the power amplifier output impedance of 50Ω, via the Palstar antenna tuner with a 4:1 output balun.

It is interesting to note from the video experiment that the oscilloscope confirmation and measurement of the resonant modes of the Tesla coil is strongly dependent on the matching network used between the generator and the primary of the coil. In the simple case where the exciter was connected to the primary through direct bypass of the antenna tuner, (direct drive), the fundamental series resonant mode could be measured very clearly at 2.14Mc, but the parallel modes could not be identified at all in the measurement. This method is commonly used to measure the Tesla coil series resonant frequency, but completely masks the parallel modes from measurement, leading to an incomplete and ultimately inaccurate characterisation of the properties of a Tesla coil. It should also be noted that the measured maximum voltage peak on the oscilloscope at 2.14Mc does not completely correspond to that measured in the Z11 characteristics of 2.19Mc. In this case where no consideration of input impedance matching has been taken into account the basic oscilloscope measurement yields incomplete and inaccurate measurement results, and whilst gives a close estimate of the best frequency point to drive the Tesla coil, does no yield the optimum frequency and conditions for maximum transference of electric power.

When the same measurement is repeated but with a tuned matching network between the exciter and primary coil, ( in this case the balanced and tuned T-network in the Palstar), the oscilloscope measurement closely matches the Z11 characteristics. Both parallel modes and the series mode can be measured accurately at the correct frequencies, and the initial starting point was again set to 2.20Mc. The difference in the two measurements is a clear example of why it is important to carefully match the output impedance of the generator to the input impedance of the Tesla coil, and this is even before we consider the optimum and maximum transfer of electric power. To maximise power transfer and obtain the highest efficiencies it is crucial to minimise power reflected from the primary circuit to the generator.

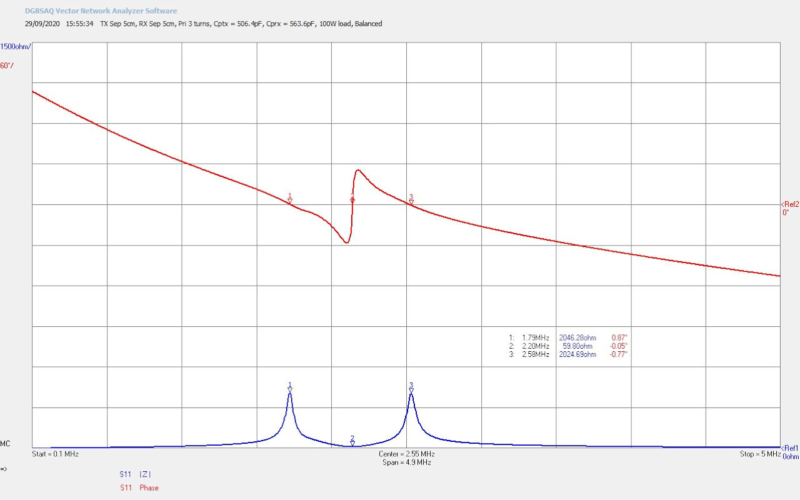

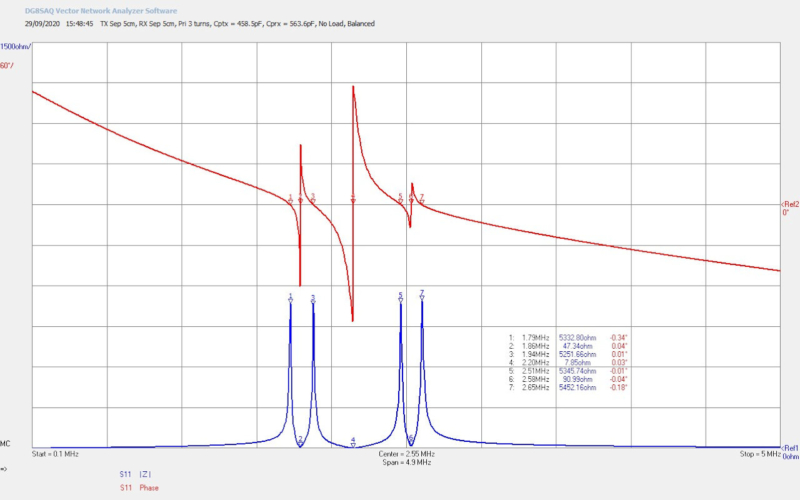

Fig 3.2. Here the transmitter and receiver coils are coupled together with a single-wire transmission medium to form a TMT system. No load is placed in the single wire, and no load is attached to the output of the receiver primary. This represents the highest quality factor, unloaded, characteristics of the system, and combines four parallel modes (M1, M3, M5, and M7), and three series modes (M2, M4, M6) together. The TMT system has been carefully balanced using the primary tuning capacitor in the both the transmitter and receiver to match the impedance of the parallel modes across the system. Balancing of the parallel modes in this way appears to contribute significantly to maximising the LMD mode in the cavity through coupling maximum power between the TEM and LMD modes between the primary and secondary coils in both the transmitter and receiver. A more detailed analysis of this TMT system has already been presented in post Cylindrical Coil Input Impedance – TC and TMT Z11 – Fig. 2.1.

It should be noted that the fundamental series resonant mode at M4 has remained constant at 2.20Mc, and for the type of linear amplifier generator being using in this experiment, is the best frequency point to drive the TMT system. At M4 the input impedance is at its minimum and is purely resistive at 7.85Ω, and is well within the matching range of the Palstar antenna tuner with a 4:1 balun at the output. Tuning to drive at  M4 is also the most stable part of the Z11 characteristics, which is most determined by the the reciprocal wire lengths of the secondary coils. It is possible to also drive the TMT system using this generator at series mode points M2 and M6. Whilst this will preferentially couple energy into different aspects of the parallel longitudinal modes, the characteristics of these points in impedance are highly dependent on the primary tuning of both coils, and the loading conditions in any part of the TMT system, in the single-wire, at the output of the receiver primary, or even in proximity to other lower impedance structures. Driving the system at unstable positions M2 and M6 would require a lot of continuous tuning adjustments, and inevitably having to run at a higher SWR during experimental operation. For experiments across the characteristics of the parallel modes it is recommended to use a series feedback oscillator which is covered in detail in the second section of post Cylindrical Coil Input Impedance – TC and TMT Z11.

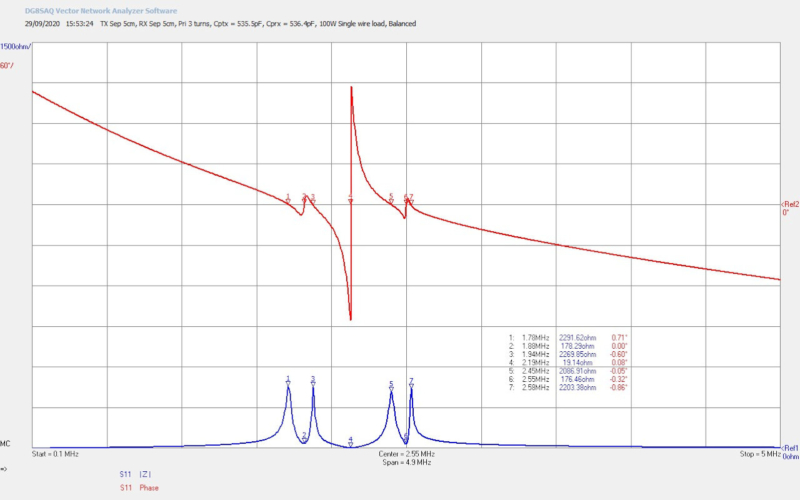

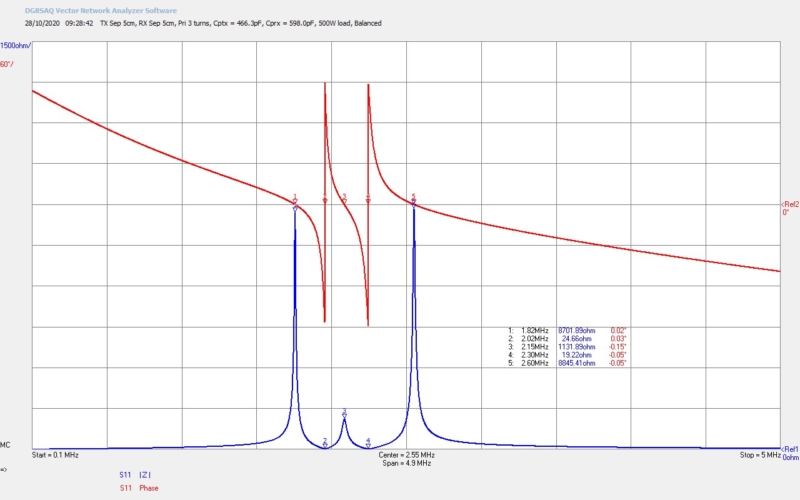

Fig 3.3. Here the TMT system of the previous figure has had a 100W incandescent lamp load added in the single-wire cavity between the transmitter and receiver. The characteristics remain essentially very similar, although the Q of the system is reduced significantly by the resistive component in the cavity. The fundamental series resonant mode at M4 has only shifted down in frequency by ~10kc to 2.19Mc, however the input impedance of the system has now increased to 19.1Ω based on the transformed down additional resistance of the 100W load in the secondary cavity. The tuning of the primary capacitors has been adjusted to maintain a balanced condition between the parallel modes. The biggest impact of adding a load in the cavity is to damp-down the parallel modes, and hence reduce the purity of the LMD mode formed in the cavity of the TMT system.

For clarity, the cavity extends between the top-end of the transmitter secondary, through the single wire transmission medium and load, and up to the top-end of the receiver cavity. Power is transferred from the generator through the primary circuit, and to the secondary primarily in the series TEM mode, which is further coupled to the parallel modes in the both the primary and secondary coils, and hence into the LMD mode across the cavity. Power is coupled out at the receiver through the reverse process from the LMD mode to the receiver parallel modes, and into the series TEM mode in the primary circuit. It is a condition of an LMD coupled TMT system that the frequency of the LMD mode < TEM mode. The LMD mode can be maximised by maximising the parallel modes in the coils which includes:

1. Specific and careful arrangement of the coil geometry (e.g. a balanced cylindrical coil), windings number, ratio and spacing, and coil materials.

2. Tuning of the parallel modes to balance the characteristics between the primary and secondary coils in both the transmitter and receiver.

3. Impedance transformations, characteristics, and loading within the single-wire transmission medium.

Coil geometry and their characteristics for Tesla coils and TMT systems are covered in detail in post Tesla Coil Geometry and Cylindrical Coil Design.

Fig 3.4. Shows the effect of moving the 100W lamp load from the single-wire to the output of the primary circuit of the receiver. The Q of the system remains reduced, and the parallel modes of the receiver coil have been almost completely damped-down (suppressed), so that they merge into the parallel modes of the transmitter, and appearing as only two parallel modes at M1 and M3. With slight transmitter primary capacitor tuning the merged parallel modes of the receiver can be revealed as slight distortions to the peak shapes at M1 and M3. The fundamental series resonant mode at M2 remains constant at 2.20Mc as the wire length in the secondary coils of the TMT system cavity has not changed, but the input resistance has risen significantly to 59.8Ω, as the resistive load of the incandescent lamps is transformed across the TMT system from receiver back to transmitter input. In this case the 59.8Ω input resistance at M2 is closer to the system impedance of 50Ω of the linear amplifier generator.

It should be noted that this represents another way to match the system impedance of the generator to the input of the TMT system, by arranging a suitable resistance load at the output of the receiver. The impedance transformation across the complex transmission line of the TMT apparatus, ensures a good TEM match at the input to the primary. The disadvantage of tuning in this way is that the resistive load reduces the Q of the system, and damps-down the parallel modes of the coils, which ultimately reduces the efficiency of the TMT system for the transference of electric power.

Fig 3.5. Shows the dramatic effect of connecting a 500W incandescent lamp at the output of the receiver, which has significantly unbalanced the TMT cavity, and suppressed the free-resonant characteristics of the receiver, through the low resistance and inductive impedance of the 500W lamp. The large collapse of the receiver characteristics has shifted the transmitter parallel modes M1 and M5 closer together, the lower parallel mode of the receiver at M3 is still present but very small, and the upper parallel mode of the receiver (from the receiver primary coil) is no-longer present. The fundamental series resonant modes are shifted as well, with the transmitter moving down to 2.02Mc, and the receiver moving up to 2.30Mc. The best driving point for the generator is now at M2 at 2.02Mc and with a input resistance of 24.7Ω, which is easily transformed and matched by adjustment of the antenna tuner. M4 the series mode for the receiver could also be used as the driven point, although it is likely that less power will be coupled through the parallel modes at this point and hence into the LMD mode, due to the collapse of these modes from the high loading on the receiver coil.

It should be noted here that despite the imbalance of the impedance characteristics, very high-efficiency power transfer between the generator and the load can still be accomplished through the coupling between TEM and LMD modes in the secondary coils, and through the strong LMD mode maintained in the low impedance cavity of the single-wire transmission medium. In this arrangement with a large, low impedance load at the receiver transference of electric power efficiencies have been measured > 99.9% in hair-line thickness (0.08mm) single-wire cavities.

Figures 4 below show highlights from the video experiment, and also greater clarity on some of the key power measurements taken during the experiment, including high-efficiency power transfer results at > 99%.

The experiments show the seemingly amazing result of transferring stably 500W of power at very high-efficiency, (peak 800W measured in the experiment, but with lower efficiency), via a single wire 60cm long and 0.08mm thick (40AWG), and comparable to the thickness of a human hair. In a standard electric circuit we would expect to transfer this magnitude of power between the generator and the load using a suitably rated twin-wire arrangement. In the TEM mode the dielectric and magnetic fields of induction establish an alternating potential across the load and an alternating current flowing through the load. As the impedance of the incandescent load is dominated by the resistive part, almost all of the power is dissipated in the lamp element as heat and light, and with resistive and inductive losses in the circuit cabling and connections.

This is in fact what occurs in the receiver primary circuit which is a conventional twin-wire circuit. The receiver Tesla coil acts a step-down transformer and energy is coupled from the secondary coil resonant modes, (both series and parallel), to the primary coil. The dielectric and magnetic fields of induction coupled through to the primary establish in a TEM mode and hence setup alternating potential across the load and an alternating current flowing through the load. The power in the primary receiver circuit can be measured accurately using a standard RF power meter, (such as the Bird 4410A used here), in a standard twin-wire circuit.

There is an equivalent and reciprocal process in the generator primary circuit. The linear amplifier supplies RF power through a standard power meter into the twin-wire primary circuit at the transmitter. The dielectric and magnetic fields of induction established by the generator in the TEM mode, setup an alternating potential across the primary coil and an alternating current flowing through the primary coil. Power is coupled to the secondary coil through the series and parallel resonant modes of the transmitter Tesla coil. Power efficiency can be measured accurately in this system because the transmitter and receiver power measurements both take place in standard twin-wire circuits that are equivalent in impedance using standard twin-wire RF power meters. The primary circuits of both the transmitter and receiver are suitably arranged to minimise resistive and parasitic inductive losses, using good RF connections and cables.

In the cavity established between the transmitter and receiver secondary coils and through the single-wire transmission medium it is conjectured that very high-efficiency transference of electric power through a 60cm 40AWG 0.08mm single wire is possible due to the LMD mode being established across the cavity, where the dielectric and magnetic fields of induction form a longitudinal wavefront that traverses the cavity establishing a standing wave with central null point, and a varying (travelling) voltage and current phase relationship along the cavity. This varying voltage and current relationship in the single-wire cavity can be visualised using the ultraviolet lamp used in the experiment where a travelling interference pattern is setup in the lamp. This interference pattern results from the longitudinal wavefront traversing backwards and forwards between the two secondary top-loads guided by the single wire in-between. In this way the longitudinal cavity extends from the top-load of the transmitter secondary through to the base, into the single-wire, and into the base of the receiver secondary up to the top-load.

When the tuning of the cavity is adjusted through the parallel modes the interference pattern can be made stationary as demonstrated in the video, and represents the optimal tuning position for the LMD mode in the cavity, it is also the point where power transfer efficiency is highest, and most power can be transferred through the cavity between the transmitter and receiver. This is also the point where a diffuse fluorescent lamp will show a null point in the electrical centre point of the cavity. Either side of this tuning the interference pattern will be seen to move towards the receiver and transmitter eventually starting to collapse towards either end of the single wire medium as the LMD mode collapses in the cavity. Coupling to the LMD mode in the secondary coil is dependent on the parallel modes in the coil and these can be adjusted very accurately using the primary tuning capacitors in the transmitter and receiver primary circuits. The LMD mode appears optimised and maximum when the primary and secondary parallel modes are balanced using the primary tuning capacitors, as shown in figures 3.

In summary, it is conjectured here that very high-efficiency transference of electric power is directly possible because of the LMD mode established in a single wire cavity, where the dielectric and magnetic fields of induction are guided around the low impedance single-wire conductor. The single-wire acts in this case like it were a monopole waveguide which would only be possible where the LM and LD modes are spatially in phase, but temporally out of phase, the condition that I conjecture is necessary for the LMD mode to form in the cavity. Real power can be transferred and dissipated at the receiver load via the single-wire transmission medium, because both the dielectric and magnetic fields of induction are guided across the cavity, and where both of these induction fields are necessary to transfer power over the cavity distance. It does not appear possible that transference of electric power can occur here through dielectric field induction alone between the transmitter and receiver coil, but rather that both the magnetic and dielectric induction fields extend across the system by virtue of LMD wavefront in the cavity, and indeed if the single-wire is disconnected from either end (guiding cavity terminated), then no power can be transferred from source to load.

All this said, it now makes sense and can be understood how 500W of power can be transferred from source to load in a TMT system where part of the cavity is a single-wire conductor the thickness of a human air. This ultra-thin section is still only a part of the guiding conductor in the cavity, and appears as yet an even more effective guide to the dielectric and magnetic fields of induction in the configuration of the LMD mode. It is conjectured here from the experiments and measurements so far, that the efficiency of transference of electric power in an LMD transmission system appears to increase as the single-wire transmission medium is reduced in conductor volume per unit length, to the boundary condition limit of the skin depth for the material, in this case ~ 0.046mm (46µm) in copper at 2Mc, where the efficiency would reach a maximum before falling-off again.

Fig. 4.6. shows the comparison of the transmitter and receiver power measured during sustained transference of 500W of power between the source and load, where the wattmeter gauges have been combined from Figs. 4.4 and 4.5 into a single image. The transmitter meter on the left shows 520W of power, and the receiver on the right 515W of power. The calculated transference of electric power efficiency in this case is 99% ±1%, and could be measured consistently during the period of operation. Other measurements of power transfer efficiency were taken at various positions and states of tune in the video experiment and consistently in the range 95% – 100%. 100% power efficiency was measured initially when using the 0.08mm single-wire conductor but dropped to a constant 99% after further tuning adjustments.

Summary of the results and conclusions so far

In this post we have experimentally observed high-efficiency transference of electric power sustained at 99%, and maximum 100%, with a estimated error of ±1%. The experiments were conducted in the close mid-field region in a TMT system driven with a linear amplifier generator, and using high power incandescent lamp loads in the receiver primary circuit. From the experimental results and measurements presented the following observations, considerations and conjectures are made:

1. The high-efficiency transference of electric power across a 0.08mm single-wire transmission medium is possible because of the Longitudinal magneto-dielectric (LMD) mode established in the cavity between the transmitter and receiver secondary coils.

2. The transfer of power in the LMD mode across the cavity results in the dielectric and magnetic induction fields being guided around the single-wire like a monopole waveguide. Power does not appear to be coupled from transmitter to receiver by dielectric induction alone.

3. The LM and LD modes are spatially coherent (in-phase) and temporally out-of-phase, combining to form the LMD mode that belongs to longitudinal transference phenomena.

4. The LMD mode shows voltages and currents that can be measured along the wire with changing phase relationship, and is considered in more detail in Transferece of Electric Power – Part 1.

5. The LMD mode forms as a standing wave in the cavity with a null point at the centre of the reciprocal cavity which can be observed using a fluorescent lamp.

6. The LMD mode can be observed through the interference pattern generated in a ultraviolet lamp placed close to the single wire cavity, from the longitudinal wavefront traversing backward and forward across the cavity. Tuning of the cavity using the parallel resonant modes in the transmitter and receiver varies the direction of interference, and is stationary at the optimum point.

7. The efficiency of transference of electric power in an LMD transmission system appears to increase as the single-wire transmission medium is reduced in conductor volume per unit length, to the boundary condition limit of the skin depth for the material.

8. The optimal efficiency transference of electric power requires optimal matching of the generator to the transmitter coil at the fundamental series resonant mode in order to transfer as much power as possible into the secondary cavity, correct tuning of the LMD mode through coil geometry and parallel mode tuning, and optimal matching between the receiver coil and the load to extract the maximum power.

This post has explored aspects of the TEM and LMD modes in the high-efficiency transference of electric power, including generator matching, tuning, and observation and measurement of various phenomena associated with TMT operation using a linear amplifier generator. The experiments conducted here are in the close mid-field region and form an encouraging starting point to extend the distance between the transmitter and receiver. Further work in progress, and to be subsequently reported, includes transference of electric power using longer single-wires where the transmitter and receiver are placed in different rooms, and buildings, and comparison over the same distance with ground connected transmission, and full Telluric transmission for far-field experiments.

Click here to continue to the next part, looking at High-Efficiency Transference of Electric Power – 11m Single Wire.


1. A & P Electronic Media, AMInnovations by Adrian Marsh, 2019,  EMediaPress




High-Efficiency Transference of Electric Power – 11m Single Wire

In this second part on high efficiency transference of electric power, we take a look at the characteristics and power efficiency of a cylindrical coil TMT system where the transmitter and receiver coils are spaced further apart in the mid-field region. In this experiment a single wire transmission medium 11m long is used to separate the coils into different rooms at the laboratory, and a remote camera is used to observe the power at the receiver load measured by an RF wattmeter. Transference of electric power over 11m, and the characteristics of a TMT system coupled by the LMD mode at this distance, is shown to be remarkably different from the close mid-field region, and requires a very different setup and configuration of the experimental apparatus in order to optimise the efficiency of power transfer up to 96%.

In the close mid-field region with a 2m single-wire in the previous experiment on High-Efficiency Transference of Electric Power, the maximum transfer efficiency was achieved when the TMT system was configured, tuned, and operated at the point where the parallel modes were balanced, and the generator was optimally impedance matched to the system. It was conjectured that this balance contributes to maximising the power transferred from the generator to the twin-wire primary circuit TEM mode, to the single-wire LMD mode within the cavity formed between the transmitter and receiver secondary coils, and back to the twin-wire primary circuit TEM mode to the load.

In the mid-field region with an 11m single-wire we will see that this balanced mode setup leads to a maximum efficiency of ~40%. It is demonstrated that it is necessary to significantly mismatch the balance between the transmitter and receiver coils in order to get the LMD mode to extend across the single-wire transmission medium and restore transfer efficiency to over 90%. Transmitter and receiver primary circuit mismatch is mainly used to restore the transfer efficiency, along with fine adjustment through generator to TMT system TEM mismatch, measured at a range of Standing Wave Ratio (SWR) of 1, π/2, φ (the golden ratio), and 2.

The video experiment demonstrates and includes aspects of the following:

1. Small signal ac input impedance Z11 for a cylindrical coil TMT system in the mid-field region, and connected via an 11m 12AWG single wire transmission medium.

2. Z11 balanced parallel mode impedance measurements, for a reciprocal TMT configuration with 3 primary turns and matched primary capacitor tuning.

3. Z11 unbalanced parallel mode impedance measurements, for a non-reciprocal TMT configuration with 4 transmitter primary turns, 2 receiver primary turns, and mismatched capacitor tuning.

4. Transference of electric power from the linear amplifier generator to a 500W incandescent lamp load at the TMT receiver output via the reciprocal TMT configuration, and with a measured efficiency around 40%.

5. Transference of electric power to a 500W incandescent lamp load at the TMT receiver output via the non-reciprocal TMT configuration, and with a measured efficiency of up to 96%.

6. Demonstration of the high tension and associated discharge that can be drawn from the high-end of the receiver secondary coil, via the 11m single wire.

7. Transference of electric power efficiency measurements up to 96% (90% average) at 400W dissipated load power (peak 500W), in the 160m amateur radio band at 2.01Mc, and via an AWG12 single wire 11m long between the TX and RX coils.

Video Notes: The receiver power meter reading is shown on the inset video in the top right corner. For clear viewing and reading of the inset meter readings, and the VNWA software measurements, “720p” or “1080p” video quality is recommended, and may need to be selected manually from the settings icon once playback has started.

The experimental system circuit diagram, followed by an overview of the linear amplifier generator components is available here.

Figures 1 below show the key small signal input impedance characteristics Z11 presented in the video experiment, along with a more detailed analysis as to their impact on the observed and measured experimental results.

Fig 1.1. Shows the balanced and reciprocal input impedance for the cylindrical TMT system with 11m single wire transmission medium. The parallel modes, at markers M1, M2, M4, and M5, are balanced in the normal way by adjusting the primary tuning capacitors at both the transmitter and the receiver. The fundamental series resonant frequency M3 @ 2.02Mc has a series resistance RS = 11.3Ω, and is the primary drive point for the linear amplifier generator used in the experiment, with fine tuning around this point established at 2.01Mc as the optimum point. The parallel modes, one from the primary and one from the secondary, for both the transmitter and receiver coils are balanced, and show the frequency splitting that occurs when resonant modes of a very similar frequency are coupled together.

This form of impedance characteristic has been very well covered before in many posts on the website, and is discussed in detail in Cylindrical Coil Input Impedance – TC and TMT Z11. Previously these characteristics have been studied in the close mid-field region, typically with a single wire in the region of 1.5-2m long, or at least 2-3 times the diameter of the secondary coil, (0.5m in the case of the cylindrical TC). In this region the coupling between the transmitter and receiver coils, via the single wire transmission medium has been shown to be significant and the parallel modes split up to 200kc apart in frequency, as can be seen here. Within the split parallel regions there is a well defined and distinctive phase change from the extended series mode. The extended series modes, both upper and lower, can also be used as drive points for a linear amplifier generator, although the series resistance at these points is higher than the fundamental series mode, and ultimately will couple less total power from the generator through the TMT system.

With the single wire now extended to 11m in the mid-field region it can be clearly seen in this impedance scan that the coupling between the parallel modes of the transmitter and receiver has reduced, the frequency split is less at 30kc, and the extended series mode phase change is only just defined between markers M1-M2 and M4-M5. The fundamental series mode remains dominant at M3 and is the optimum drive point for linear amplifier generator. Overall the transmitter and receiver coils are coupled together by the single wire transmission medium in the TEM mode, but the coupling is reduced from the close mid-field region, and the additional impedance of the longer single wire is transformed back through into the transmitter primary and reflected in the increased series mode resistance at M3, RS = 11.3Ω.

Fig 1.2. Shows the effect of adding a 500W incandescent lamp load at the receiver primary coil output. The transmitter primary tuning capacitor CPTX has been adjusted from 663pF to 711pF in order to balance the transmitter parallel modes. The receiver primary tuning capacitor CPRX remains the same at 793pF. The resistive and inductive loading presented by the high-power incandescent lamp at the receiver has significantly changed the operating characteristics of the TMT system from a well balanced cavity, to a strongly unbalanced cavity, at least in terms of the TEM input impedance Z11.

The parallel modes of the receiver coil have been almost entirely suppressed with only a very slight presence at M3, and the overall resonant circuit properties of the receiver distorted and skewed away from the reciprocal coil characteristics of the unloaded receiver TC, to the characteristic shown at M3. It is important to note that this huge imbalance in the receiver end of the cavity in both the TEM mode, and I would conjecture the LMD mode due to the definite and distinctive change in the parallel modes, leads to a setup in this experiment where the transmitter end also needs to be unbalanced in order to reestablish the maximum efficiency in the transference of electric power. It is conjectured and discussed later that the setup change to the transmitter establishes a balance again in the LMD mode in the cavity when the total effect of the receiver and the longer single wire are taken into account together.

The fundamental series resonant mode has shifted down very slightly to 2.01Mc, RS = 13Ω, which was found to be the optimum drive point for the linear amplifier generator during the tuning and setup part of the experiment prior to the video experiment itself. The balanced reciprocal setup shown in figures 1.1 on this page, and 2.1 here , which was so effective in the close mid-field region, is shown to yield a maximum power transfer efficiency of now more than 35-45%. It is clear that the coupling introduced by the single-wire transmission medium and the impedance that this presents to both the TEM and LMD mode is critically important in both the setup and operation of a TMT system over distance.

Fig 1.3. Here the setup of the transmitter and receiver has been changed from that of the balanced reciprocal cavity condition, which yields power transfer efficiencies no higher than 35-45%, to the seemingly mismatched characteristic that yields measured transfer efficiencies up to 96% in the experiment. This setup requires the transmitter primary turns to be increased from 3 to 4, and a significant increase in the primary tuning capacitor CPTX = 1206pF. In correspondence, the setup of the receiver primary turns is also decreased from 3 to 2, and the primary tuning capacitor is significantly reduced to CPRX = 146pF. In this setup the input impedance Z11 for the TEM mode appears highly imbalanced, however for the LMD mode it is conjectured that a strong coupling and balance is re-established.

The fundamental series resonance at M3 has again only shifted very slightly in frequency to 2.0Mc, as the wire length of the experiment, the biggest contributor to this mode, remains constant, and with an increased series resistance RS = 22.8Ω. This still represents the best generator drive point for this experiment, with the lowest series resistance, and maximum coupling to the both the series and parallel modes that are active in this configuration. Transmitter parallel modes at M1, M2, and heavily suppressed around M3 and M4, are shifted quite considerably by the primary tuning capacitor mismatch. The dominant parallel modes, and hence conjectured to contribute most strongly to the LMD mode in the cavity, are now at M1 and M2 and involve both the transmitter and receiver, which will become apparent in the next figure. It should be noted that this figure is on a vertical magnitude of impedance scale of 4kΩ, whereas the previous figures where set to 1.5kΩ. This emphasises the very strong lower parallel modes and suggests that the transmitter pump action, from the generator to the LMD mode in the cavity, has been preferentially increased at this lower frequency of 1.2Mc.

The reduction in the primary setup at the receiver appears to have loosened the coupling between the primary and secondary coils of the receiver, which in turn has increased the Q of the free resonance in the secondary coil, increasing the phase change at M3, and emphasising the receiver characteristics transformed across the single wire cavity back to the transmitter. In short it appears like the LMD pump action into the cavity has been increased, whilst the Q of the receiver has also been increased. It is conjectured here that this combination of effects re-establish a balanced condition for the LMD mode, and hence a low impedance path for this mode across the cavity. With the LMD mode established across the cavity the efficiency of power transfer is pushed right back up to 95+%. Losses in the TEM mode are clearly increased with the longer single wire, but it is conjectured this is not the case for the LMD mode which is coherent spatially but not temporally over the entire cavity.

The split in frequency between the fundamental series mode at M3 and the upper extended series mode at M4 is now only 80kc, which is a very different condition than that which occurs in the balanced non-loaded mode. This close correspondence between these series two modes at the transmitter and receiver suggests part of the mechanism that allows very high-efficiency transference of electric power, where power is coupled from the primary to the secondary and hence into series modes to parallel modes, and then back through parallel modes to series modes at the receiver, a transformation across the TMT system from TEM to LMD and back to TEM mode in the load. Ultimately real power is passed from the generator through to the load which requires the TEM mode in both primary circuits, and the LMD mode as a result of the combined LM and LD modes across the cavity of the TMT.

Fig 1.4. Here we see a zoom of the peak of the dominant parallel mode from the previous figure at M1 and M2. Very interestingly we see that this peak is actually split into two peaks, suggesting two parallel modes that are dominant in both the transmitter and receiver but very weakly coupled. This now sets up the condition that we have two parallel modes separated by only ~ 1kc, and two series modes separated by only 80kc, from both the transmitter and receiver. I conjecture that it is this combination of series and parallel modes at each end of the TMT that makes it possible to yield very high-efficiency transference of electric power in this TMT system with a longer single-wire.

So what appears to be a loaded and unbalanced setup actually yields a TMT system that is balanced and matched for both the TEM and LMD modes combined. From a TEM perspective of the input impedance Z11 this appears to be heavily loaded and biased towards the transmitter, but on closer inspection and analysis suggests a configuration that balances the system between transmitter and receiver for maximum efficiency, minimum impedance for power transfer, and optimal conditions for the 500W incandescent load used in the experiment. Fine tuning of this configuration was further demonstrated by introducing a non-zero reflection coefficient from the transmitter primary circuit to the generator. This was accomplished by progressive adjustment of the antenna tuner away from the optimum SWR of 1.0, increasing up to 2.0.  A standing wave ratio of π/2 to φ (the golden ratio) were found to increase the efficiency slightly making the difference between a stable 90% efficiency up to a maximum in this experiment of 96%.

It is suggested here that the TEM mismatch at the transmitter primary circuit is a method of fine tuning the balance of the circuit for the TEM and LMD modes combined. The balance between these two modes, and hence the energy coupled into and between these modes, and across the complete TMT system and cavity, appears to have the most impact on the power transfer efficiency.

Summary of the results and conclusions so far

In this post we have experimentally observed high-efficiency transference of electric power sustained at 90%, and with fine tuning and adjustment up to a maximum of 96% with an estimated error of ±1%. The power was transferred using a cylindrical coil based TMT system, where the transmitter and receiver are coupled by an 11m single wire transmission medium. 400W of power could be stably passed from the linear amplifier generator to the incandescent load at maximum transfer efficiency (90-96%), and up to 500W was tested at a reduced efficiency ~85%. From the experimental results and measurements presented the following observations, considerations and conjectures are made:

1. The “ideal” balanced reciprocal cavity setup, optimal in the close mid-field region, is not efficient for optimum power transfer in the more distant mid-field region, and most specifically when driving a heavy load at the receiver output.

2. An unbalanced TEM setup at the transmitter and receiver coil appears to restore the overall combined balance of the TEM and LMD modes across the entire TMT system restoring the high-efficiency power transfer characteristics in the mid-field region.

3. The unbalanced TEM setup appears to increase the LMD pump action into the cavity, whilst the Q of the receiver has also been increased by loosening the primary receiver coupling. It is conjectured here that this combination of effects re-establish a balanced condition for the LMD mode, and hence a low impedance path for this mode across the cavity.

4. The Z11 impedance characteristics in the unbalanced setup and when loaded at the receiver with a 500W incandescent lamp show a fine split between the series modes and the dominant lower parallel modes, which appears to show the transmitter and receiver coupled together in both the TEM and LMD modes

5. This close correspondence between these modes at the transmitter and receiver suggests part of the mechanism that allows very high-efficiency transference of electric power, where power is coupled from the primary to the secondary and hence into series modes to parallel modes, and then back through parallel modes to series modes at the receiver, a transformation across the TMT system from TEM to LMD and back to TEM mode at the load.

6. The maximum transfer efficiency could be fine tuned by mismatching the generator to the primary transmitter circuit and hence creating a reflection coefficient in the transmitter part of the system. SWRs in the region 1 to 2 were tested, with the best results around π/2 to φ (the golden ratio).

7. It is suggested, but needs considerable further work to develop, that the impedance presented by the single-wire transmission medium to the LMD mode is not the same as that presented to the TEM mode, and where a narrow single wire to the limit of the skin depth would appear as a high impedance at the driving frequency to the TEM modes, this is not the case for the LMD modes. For the LMD modes (LM and LD) the single-wire appears as a low impedance monopole waveguide which is spatially coherent over the extent of the cavity.

This experiment has opened up a range of interesting questions that need further consideration and considerable investigation to answer and progress, and most particularly from conclusion 7; to understand and establish in more detail the impedance presented by a single-wire transmission medium to the LMD mode generated in the cavity. It would also be interesting to compare the single-wire to a Telluric transmission medium, which will be the focus of the next experiment in this series. This experiment will look at transference of electric power over a 40m single-wire where the transmitter and receiver are in separate buildings of the lab, and also to compare the measured performance to a Telluric connection between the two via a basic ground system at each end.

Click here to continue to the next part, looking at Transference of Electric Power – Single Wire vs Telluric.


1. Tesla, N., Colorado Springs Notes 1899-1900, Nikola Tesla Museum Beograd, 1978.

2. A & P Electronic Media, AMInnovations by Adrian Marsh, 2019,  EMediaPress

3. Dollard, E. and Energetic Forum Members, Energetic Forum, 2008 onwards.




The Wheelwork of Nature – The Golden Ratio Discharge

Sooner or later research into the underlying nature and principles of electricity must inevitably lead to those larger philosophical and esoteric questions surrounding the origin and purpose of life, its mechanisms that constitute the wheelwork of nature, and our purpose and part to play as very small cogs in this grand design. I have in previous posts started to tentatively touch-on and develop my own current understanding of the wheelwork of nature through ideas, designs, experiments, and conjectures regarding displacement and transference of electric power. This post is the first in a sequence looking at experiments in electricity which reveal or suggest clues about this underlying wheelwork, with the associated phenomena and results, their possible origin and purpose, and how we may form a synchronicity with this wheelwork, and hence benefit from a journey that increases our knowledge and awareness of our-self and that of the great mystery or grand design. This first post in the series looks at the wheelwork of nature – Golden Ratio or Fractal “Fern” Discharge experiment, along with observations, measurements, and interpretation.

For a summary recap on how I see the principles of displacement and transference of electric power, and the conjectures that I have already made based on the experimental work reported so far, I recommend reviewing Displacement and Transference of Electric Power, Tesla’s Radiant Energy and Matter, the Transference of Electric Power category, and the overall Introduction to this website. The essence of this definitive journey was so well articulated by Nicola Tesla, in what is for me one of his greatest statements, and which should have both enormous and far reaching impact on the efforts of our research into the wheelwork of nature, and the underlying principles and mechanisms that constitute this wheelwork: “Throughout space there is energy. Is this energy static or kinetic! If static our hopes are in vain; if kinetic – and this we know it is, for certain – then it is a mere question of time when men will succeed in attaching their machinery to the very wheelwork of nature.”, Tesla[1].

In this statement Tesla shares his unwavering believe that it is only a matter of time until we will attach our experiments, apparatus, and machines directly to the wheelwork of nature, not if, but when. And how close have we gotten to this vision ? It would seem to me that in the field of electricity research as a whole, a little progress may have been made, but we still seem quite far from accomplishing this monumental task of understanding, and making a shift of focus from measuring voltages and currents on the bench in an apparatus seemingly unrelated to the wheelwork of nature, to an inclusive and intuitive approach where the workings of our apparatus reflect the underlying wheelwork in the natural world. In order to accomplish this I believe it is a necessity to work at building a bridge between the Philosophical/Esoteric and Scientific disciplines, through looking at electrical phenomena with fresh eyes and with a mind open to grasping an understanding of the underlying principles and mechanisms across seemingly diverse and seemingly different disciplines.

Science in our current times considers the field of electromagnetism to be almost entirely understood and explained, with any further exploration aimed at the successive dissection of smaller and smaller detail. Whilst science has developed a successful model to explain the outer form of electromagnetism, and the principles and equations required to utilise this field in engineering, this is only a good observation and measurement of the outer form, with all the underlying quality and richness of this subject yet to discover. In this post I intend to start this process by including conjectures regarding the experimental results and phenomena that cross these multi-disciplinary boundaries, and hence take those small steps on the long road to building a bridge of understanding and ultimately greater awareness of our own inner world and that of nature. Whilst this will not appeal to some that read this post, for others it may trigger ideas and different ways to consider and interpret the results of our experiments, and open the possibility for new discovery of the inclusive hidden world ever present in our daily endeavours.

In understanding Tesla’s statement it would seem important to first get a grasp on what constitutes the wheelwork of nature, and how we go about attaching our endeavours to it. In an effort to impart some of what I think and feel on this topic I will use the experiment to be presented in this post as an example, which with all best intent may shed but a little light on the vast unknown darkness that lies ahead of us on this journey. In this post I will be looking experimentally at a Tesla coil (TC) experiment first demonstrated by Eric Dollard[2], using his Integratron apparatus in 1978. The apparatus generated a “fern” like discharge, one quite distinctly different from the normal range of “lightning” like discharges emitted by the majority of TC apparatus and experiments.

This “fern” discharge is particularly interesting when viewed as a form of fractal, which may also have golden-ratio geometry associated with it, where the filaments and tendrils formed along the primary streamers have an impulse like nature, are momentarily transient and orthogonal in nature, and the overall growth and pattern of the discharge is reflected in naturally occurring forms. These combined together indicate to me that this experiment may lend itself well to exploring and gaining a better understanding for the wheelwork of nature, or in other words, the underlying principles and mechanisms that lead to the generation of this exciting result. Since Eric’s original experiment there appears to be little public knowledge available on the details of how to generate this phenomena, the apparatus and operating conditions required to call-forth or reveal this type of discharge, and considered analysis and conjecture on how this phenomena occurs, and what it can show and tell us regarding the wheelwork of nature.

In this post I will be experimentally demonstrating this phenomena in a two-part video experiment, looking in detail at the apparatus and setup required to generate this discharge, along with analysis of the TC impedance characteristics, and some preliminary consideration as to the meaning and relevance of this phenomena. As way of introduction directly to the results, figure 1 below shows a side-by-side comparative image of Eric’s original experimental result, and the discharge obtained in the experiment presented in this post. It can be seen that the discharge in nature and form are equivalent.

If we study these images carefully looking at the similarities and differences then we start to see a most astonishing result, that many of the features occur in the same proportion and with same intrinsic detail. The primary tendril grows vertically in the centre and is essentially the same form with the same curve, sub-tendrils emerge at similar points along its length, and micro-filaments are ever-present orthogonal to the main structure. The second main tendril to the left, (allowing for some 3D rotation on axis), follows a similar pattern with corresponding bifurcations and sub-tendrils along its length, as do the other smaller tendrils and filaments around the breakout point.

When considering electric discharges, what are the chances that two different experiments, with different coil systems, materials, and components, and different generators operated with unknown differences, will produce two discharges that are so very similar in geometric structure, form, and nature ?  If the nature of the discharge is essentially random both spatially and/or temporally, then it would seem most unlikely, but if there are underlying guiding principles at work then it would seem quite possible, provided the same set of principles are involved in both experiments. These underlying guiding principles I am referring to as the wheelwork of nature, and this experimental series is intended to see what can be discovered, understood, and applied in attempting to attach these experiments to the very wheel work of nature!

This experiment uses the Plate Supply, yet to be covered in detail in the Tube Power Supply Series, as the high tension generator, combined with a dedicated coil system consisting of a single Russian GU-5B power triode, and a nominally designed 3.5Mc conventional style Tesla coil. The TC is designed and arranged with a tightly wound and coupled primary and secondary coil geometry, specifically intended for high voltage magnification and the generation of discharge streamers. The design deliberately steers clear of any design proportions involving the golden ratio or optimisations suitable for the transference of electric power in a TMT system, and this is intended in order to emphasis the quality of the experimental result generated by underlying principles in the wheelwork of nature, rather than outer geometric proportions arranged to demonstrate any particular result.

Part 1 of the video experiment demonstrates and includes aspects of the following:

1. Introduction to the wheelwork of nature experimental series based on Nicola Tesla’s famous quotation, and Eric Dollard’s original “fern” discharge experiment.

2. Brief Introduction and consideration of the importance and implications of the bridge between the Philosophical/Esoteric and Scientific disciplines, through grasping an understanding of the underlying principles and mechanisms of the wheelwork of nature.

3. Overview of the tube plate supply generator, GU-5B coil system, and Tesla coil to be used in the experiment.

4. Design and construction considerations important to a high-frequency 3.5Mc Tesla secondary coil, suited to discharge experiments in the wheelwork of nature.

5. Primary coil drive circuit apparatus using a series feedback class-C Armstrong oscillator, tuned to the lower parallel resonant mode at 2.6-2.9Mc, and matched for best power transfer from the generator.

6. The “fern” discharge phenomena at various generator power output levels from 100W – 2.2kW

7. Observation of the characteristics of the “fern” discharge including fractal like self-repeating, self-similar tendrils, golden-ratio like proportions in the tendrils, orthogonal emitted sub-tendrils, and orthogonal displacement like micro-filaments and fibres.

8. Symmetric and reflected discharge patterns in geometric space, including tendril growth and extinction, and temporally based non-random, sequenced and repeating discharge patterns indicative of a defined “dance” routine.

9. Conjecture of an underlying dynamic and guiding pattern and order to the “fern” discharges, and hence a tantalising and astonishing view of part of the underlying mechanisms of the wheelwork of nature.

Part 2 of the video experiment demonstrates and includes aspects of the following:

1. Experimental variations to part 1 of the experiment in order to see if the nature and form of the fractal “fern” discharge could be changed to another form

2. Tuning the coil system down to 2.1Mc on the lower parallel resonant mode, whilst observing the discharge form.

3. Tuning the coil system up to 4.0Mc on the upper parallel resonant mode, whilst observing the discharge form.

4. Tuning the coil system across the transition between the lower and upper parallel resonant modes, whilst observing the discharge form.

5. Changing the blocking/tank capacitor at the output of the plate supply from 25nF 25kV to 30uF 8kV.

6. Changing the plate supply output from a bridge rectified waveform with blocking capacitor, to a raw unrectified waveform with no blocking capacitor.

7. Adding a toroidal top-load to the Tesla coil and retuning the lower parallel resonant mode to 2.28Mc, whilst observing the discharge form

8. Replacing the single GU-5B power triode with parallel connected dual 833C power triode tubes.

9. Observation using the dual 833C triodes at the upper parallel resonant mode at 3.9Mc of a tighter and more rounded fractal “fern” discharge, with shorter, more rounded, and more numerous tendrils.

Figure 2 below shows the schematic for the experimental apparatus used in the video experiments. The high-resolution version can be viewed by clicking here. The tube plate supply is not included here and will be covered subsequently in another post.

Principle of Operation and Construction of the Experimental System

The plate supply is configured with two high voltage (HV) microwave oven transformers connected in series to produce at maximum load 4.2kV @ 800mA, and up to 6.5kV unloaded. From the GU-5B datasheet the maximum anode potential is rated at 5kV for frequencies less than 30Mc, so two transformers in series are adequate when driving the experiment in CW (constant wave) mode. Although not covered in the datasheet the GU-5B can withstand considerably higher anode voltages up to ~ 8-9kV when driven in a pulsed mode with a low duty cycle, which considerably improves the forward pressure supplied to the primary coil. In this experiment I use only CW mode in order to simplify the generator drive characteristics, and to minimise variations in the circuit that could further mask the origin of the discharge phenomena to be explored.

The output of the HV transformers can be configured to a variety of different stages in the plate supply, including raw output, bridge rectified, or level shifted. In this experiment I predominantly use the bridge rectified output to provide an all positive unipolar electrical pressure to the coil system. For experimental variation I also demonstrate the raw output of the transformers which supplies the SCR controlled portion of the sinusoidal transformer output, up to the full sinusoidal output at maximum input power. In this experiment the purpose of the generator is to supply sufficient voltage swing across the primary to ensure high voltage magnification at the top-end, whilst also supplying adequate current in the primary circuit so there is strong magnetic induction field coupled between the primary and secondary coils, and hence the discharges are hot, white, thick tendrils that can be readily observed, measured, and studied.

At the output of the plate supply is the blocking/tank capacitor which is intended to protect the plate supply components, such as the semiconductors in the bridge rectifier and the power control SCR, by preventing voltage spikes and oscillation from the primary resonant circuit from being reflected back into the power supply. This can happen very easily e.g. if there is a poor impedance match between the generator (tube anode) and the Tesla coil, or during tuning experiments the tube stops oscillating, or oscillation becomes unstable between the upper and lower parallel resonant frequencies. In the basic experiment a 25nF 25kV pulse capacitor is used as the blocking/tank capacitor at the output of the power supply, which is raised right up to 30µF 8kV for the variation experiments.

The positive output from the blocking capacitor is fed via a short length of AWG 12 silicon coated, micro-stranded, low-inductance cable to the primary coil circuit, which consists of the 7.5 turn primary coil and a KP1-4 10kV vacuum variable capacitor 20-1000pF connected in parallel. The connections between the primary coil and the primary tuning capacitor are AWG 8 silicon coated, micro-stranded, low-inductance cable, and the inter-connections on the top of the coil system on both sides of the primary coil are made with copper busbars and 4mm high voltage terminals. The other end of the primary coil circuit is connected directly to the anode of the GU-5B tube, again using the same AWG 12 low-inductance cable.

The complete primary circuit from the plate supply back to ground is connected using low-inductance heavy duty cable in order to reduce inductive reactance losses in the primary circuit, and hence maximise the potential difference swing across the primary coil. In this experiment the ground connection is simply the line earth provided to both the plate supply unit, and the coil system unit. For simplicity, and hence maximum clarity on the experimental phenomena, no rf ground was used separately to the grounding of the units to the line earth. So the return line for both the generator drive via the GU-5B and plate supply, the secondary coil bottom-end, and the pickup coil bottom-end are all connected directly together by the line earth.

In order to simplify the TC drive from the generator the GU-5B is arranged as a Class-C Armstrong oscillator, which derives feedback from the secondary coil resonation via a 4-turn pickup-coil which is positioned under the primary coil, and isolated from the primary and secondary by a nylon plastic platform at the base of the TC. The pickup coil feeds the charging circuit in the grid circuit of the tube. Correct polarity and selection of the grid capacitor combined with the parallel discharge rheostat will enable the tube to oscillate at the selected and tuned parallel resonant mode.

The principle of operation of this form of tube driven series feedback oscillator is covered in detail in the post Vacuum Tube Generator (811A) – Part 1. In a tube driven primary coil circuit it is important to maximise the voltage swing across the primary coil, and at the top-end of the tube anode, whilst ensuring maximum power transfer from the generator to the primary circuit. This is accomplished by ensuring that the anode resistance of the tube during operation is arranged to be as close to the resistance presented by the primary coil at either the upper or lower parallel resonant frequency that is being used. This is then fine-tuned for optimum power transfer by adjusting the grid feedback bias.

When driven by this type of oscillator with feedback directly from the secondary coil resonation, the oscillation will centre around one of the two parallel modes presented by a tuned primary-secondary Tesla coil. The different modes that result from the close coupling of a primary and secondary coil, are well covered, measured, and explained in Cylindrical Coil Input Impedance – TC and TMT Z11. The design of the Tesla coil itself for this experiment will be covered next, along with the usual small signal ac input impedance characteristics Z11, in order to understand the TC impedance properties and characteristics, the best match and driven point for the experiment, and the range of tuning that is available for variations in the experiment.

Figures 3 below show a range of pictures of the experimental system, including some of the construction details of specific interest, and some of the variations to the initial basic setup of the experiment.

Secondary Coil Design, Considerations and Construction

The design of the Tesla coil always starts with the characteristics of the secondary coil to define its series fundamental resonant frequency ƒOSS), and the geometry of the coil suitable for the type of experiment to be undertaken. Design considerations for Tesla coils are considered in detail in the post Tesla Coil Geometry and Cylindrical Coil Design. For this experiment ƒSS without any top-load or wire extension, was designed nominally to be in the 80m amateur radio band at 3.5Mc. The geometry for the coil is to be tightly wound with many turns e.g. > 100 in order to maximise magnification of the dielectric induction field across the secondary length, and which is well suited to discharge streamers of a good length and intensity at the break-out point at the top-end of the secondary coil. When grounded at the bottom-end, which represents a lowering of the bottom-end impedance, the secondary will appear as a λ/4 resonator where the series mode resonant frequency ƒSS is dominated by the wire-length and series self-capacitance of the coil. The accompanying parallel resonant mode will be at a higher frequency than the series mode, and is dominated by the inter-turn inductance and inter-turn capacitance of the coil.

The tightly wound secondary geometry with many turns has an aspect ratio of 5:1 so the coil is tall and narrow and well suited to high voltage magnification at the top-end. A suitable piece of 3″ diameter irrigation pipe was available in the workshop which had a measured diameter of 76mm.  The complete design of the coil deliberately avoids any golden-ratio proportions in the aspect ratio of the secondary, the conductor diameter to the conductor spacing of the windings, and the drive parallel resonant mode frequency to the series mode frequency. This intentional omission of the golden-ratio is intended to simplify the interpretation of the experimental results, by removing considerations of influences that may arise from golden-ratio relationships between the experimental apparatus and the underlying principles of the wheelwork of nature. Subsequent variations to the basic experiment can then be added e.g. a Tesla coil that includes golden ratio proportions but has a nominally designed equal series fundamental resonant frequency at 3.5Mc, in order to compare the results and observed phenomena for golden-ratio influences and/or principles.

Tccad 2.0 was used for a rapid and approximate indication of the electrical and resonant characteristics of the secondary coil, the detailed results of which are shown below in figure 4. The wire selected for the secondary coil is a good quality silicone coated multi-stranded conductor, the silicone coating being very good both thermally, and as an insulator to prevent breakouts and breakdown from the upper turns of the coil to the lower ones. A standard electrical wire size 1mm2 (1.1mm diameter) with a total diameter of 2.45mm (nominally 2.5mm in the specification) was found to be ideal for the design proportions, and also avoids any golden-ratio winding proportions in the design.

The parameter “Winding Height of Secondary Coil” on the turn period of 2.45mm, (“Wire Diameter” 1.10mm + “Spacing Between Windings” 1.35mm), was used to adjust the number of turns in the secondary until the “Approximate Resonant Frequency” was closest to the desired 3.5Mc, and in this case was calculated to be 3493.87kc. Since we are running the secondary coil without a top-load, and with many tightly coupled turns, the “Secondary Quarter Wavelength Resonant Frequency” will be far from that required, in this case at 2025.26kc, the difference in the two also indicating that there will be a reasonably wide difference in frequency between the series and parallel resonant modes of the secondary.

In this experiment the secondary coil is to be driven magnetically coupled to a primary coil as per a standard and conventional Tesla coil arrangement, and which is well suited to being driven by variably tuned upper and lower parallel modes by a feedback oscillator. Since a spark gap generator is not being used, which requires very high oscillatory currents in a tuned primary tank circuit, the secondary coil could be driven directly by the generator without a primary coil, and at the series fundamental mode. This would require an output transformer to transform the high plate resistance of the tube to the low series resistance of the secondary coil at resonance. Whilst this latter method is a more efficient and matched drive at the series resonant frequency, it also adds additional complexity in the output matching transformer, and the controlled output frequency from a linear amplifier drive.

Primary Coil Design, Considerations and Construction

For this experiment, simplicity of Tesla coil drive was selected in order to minimise influence on the final results, and hence a standard primary-secondary Tesla coil arrangement was used. The primary coil is a standard tightly wound multi-turn geometry with a heavier gauge wire than the secondary coil, nominally again a good quality silicone coated, multi-stranded conductor, and of a standard electrical wire size of 2.5mm2, and with a total diameter of 4.0mm. The diameter of the coil was set at 130mm using acrylic tube, which results in a reasonably tight magnetic coupling to the secondary, and hence good power transfer from primary to the secondary, combined with excellent voltage magnification properties, and all very well suited for large and powerful discharges at the top-end. The number of primary turns was defined as a balance between the magnetic coupling and the tuned parallel mode frequency when combined with the KP1-4 primary tuning capacitor. 7.5 turns was found as an optimal balance between the magnetic coupling, a suitable tuning range of the primary variable capacitor to cover both the upper and lower parallel modes, and physical connection of the electrical outputs to the input busbars on both the +ve and -ve sides.

This form of primary is very well suited to a generator which is based on a driven oscillator or linear amplifier. In this type of generator which is often vacuum tube based, (or semiconductor based), the drive frequency of the generator is arranged to be at a specific point in relation to ƒSS dependent on the series or parallel mode to be driven, and the primary circuit consisting of the coil and parallel tuning capacitor are not arranged to be resonant to the selected mode of the secondary. In this case the primary currents are much lower than in a spark-gap primary tank circuit, but nonetheless transfer maximised power from the generator to the primary based on a reasonable impedance match of the tube plate resistance to the high parallel resonant mode resistance. In addition, no attempt has been made to design the primary circuit for equal weights of conductor with the secondary coil, thereby also simplifying the included design principles, and in principle simplifying the interpretation of the measured results.

From repeated operation of the coil system in discharge experiments, the gauge and design of the primary has been found to get quite hot when running at high input powers up to ~ 2.5kW, and for sustained time periods e.g. > 1-2 minutes in CW mode. Pulsed mode improves this further, but was not used in the basic form of the apparatus, to again not complicate the possible interpretation of the experimental results. Later experiments use a re-designed primary of the same diameter but with much heavier gauge windings e.g. AWG8 or 12 silicone coated micro-stranded wire, and a naturally convection cooled coil wound on support posts, rather than a solid acrylic tube. Details of this improved primary coil will be presented in subsequent experimental posts.

Overall, the design of the primary and secondary, both electrically and mechanically, were arranged to be able to cope with a high drive input power from the plate supply, which provides hot white discharge streamers at the top-end of the secondary. These powerful discharges of good length and definition make it much easier to observe, identify, and study their form and geometric structure over extended time periods, and the designed apparatus lends itself directly to the purpose of uncovering the wheelwork of nature. This is in itself a most important principle in understanding what it means to “hook” our apparatus to the wheelwork of nature, or in other words apparatus suitable for such discovery must be designed, constructed, and operated with deliberate intent and purpose to this end. In this way it becomes possible for the intent and purpose of the operator and apparatus to reflect and attune to specific vibrations within the wheelwork of nature, revealing new in-sight, knowledge, and understanding!

Small Signal AC Input Impedance Measurements

Figures 5 below show the small signal ac input impedance Z11 measured directly on the experimental system, and using an SDR-Kits VNWA vector network analyser, as used on many experimental pages on this site. The measurement setup, equipment, and connection to the experimental apparatus is shown in figures 4.14 and 4.15.

To view the large images in a new window whilst reading the explanations click on the figure numbers below.

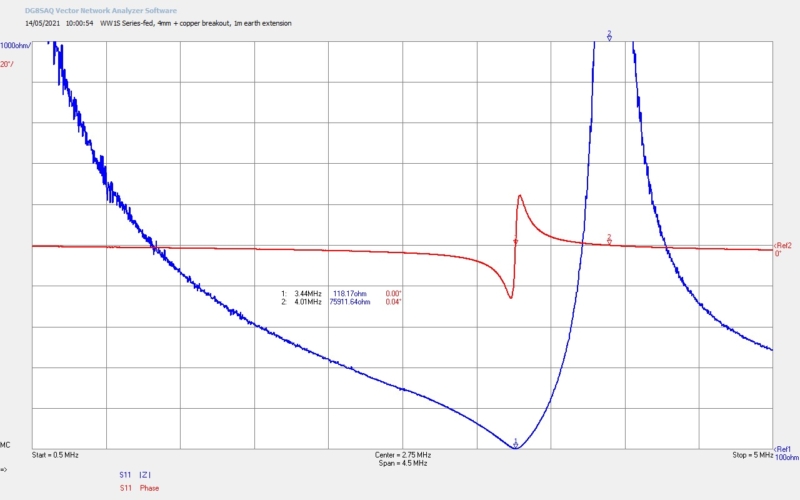

Fig 5.1. Shows the input impedance Z11 over the range 500kc to 5Mc for the secondary coil series connected to the VNWA, and with a 1m earth extension at the negative terminal of VNWA to lower the impedance at this point, and ensure a λ/4 resonator measurement, whilst maintaining the secondary coil as unloaded as possible. The series measurement of the secondary enables its characteristics to be measured with minimal variation brought about from coupling with the primary, and hence the cleanest results for the characteristics of the secondary alone. The magnitude of Z11 (blue curve) show clearly the series fundamental resonant mode ƒSS (secondary-series mode) at marker M1 at 3.44Mc, and series resistance RS = 118.2Ω, and the corresponding phase change from an inductive to capacitive reactance characteristic of a series resonant circuit. At ƒSS the phase of Z11 (red curve) Ø is ~ 0°, and shows that the secondary coil is a completely resistive impedance, where the frequency of this mode is dominated by the wire length of the coil combined with its overall self-capacitance and series resistance.

The parallel resonant mode ƒSP (secondary-parallel mode) occurs at marker M2 at 4.01Mc, and again has the characteristic high resistance RP ~ 76kΩ with a phase Ø ~ 0°, that corresponds to resonance that results from a parallel resonant circuit, and in this case dominated by the inter-turn inductive reactance, and the inter-turn capacitive reactance. It is most characteristic for a Tesla secondary coil of many different geometries to display this dual series and parallel modes, and which makes this form of coil most suitable to a wide range of driven and operating conditions, with a variety of different types of generators. The impedance characteristics of a Tesla coil are measured and explored in detail for the input impedance in Cylindrical Coil Input Impedance – TC and TMT Z11, and for the transmission gain in Cylindrical Coil Transmission Gain – TC S21.

It can be seen from this initial series measurement of the secondary coil that its measured properties correspond well with the designed characteristics, where ƒSS at 3.44Mc deviates only by ~1.5% from the Tccad results at 3.49Mc. The span from the series to the parallel mode from 3.44Mc to 4.01Mc spans entirely the 80m amateur radio band of transmission. It is also to be noted that when compared with the cylindrical coil measured in Cylindrical Coil Input Impedance – TC and TMT Z11, that the quality factor Q, of this coil is considerably lower. This can be identified easily by the sharpness of the phase transition at ƒSS and will reflect much more noticeably into the primary coil Z11 characteristics of the system as seen by the generator. The lower Q results predominantly from the tightly wound geometry of the secondary coil. the high aspect ratio, the large number of turns. and hence the increased series resistance of the secondary coil at series resonance. The reduced Q however, does not impact on the intended experimental purpose of this system, but is interesting to note on the geometry differences of coils explored on this website.

Fig 5.2. Simply shows fig. 5.1 on a magnified vertical impedance scale (1000Ω per division), and emphasises the details of the series fundamental resonant mode ƒSS at marker M1. This mode forms a very clean and stable drive point suitable for a frequency controlled linear amplifier generator either driven directly from the generator without  a primary coil, or via a primary coil, and in both cases with an output transformer and matching stage. In this experiment we drive the parallel modes using a series feedback oscillator in order to simplify the drive circuit, reduce possible experimental system influences, and allow for wide and easy primary circuit variation, and hence self-tracking and tuning frequency control.

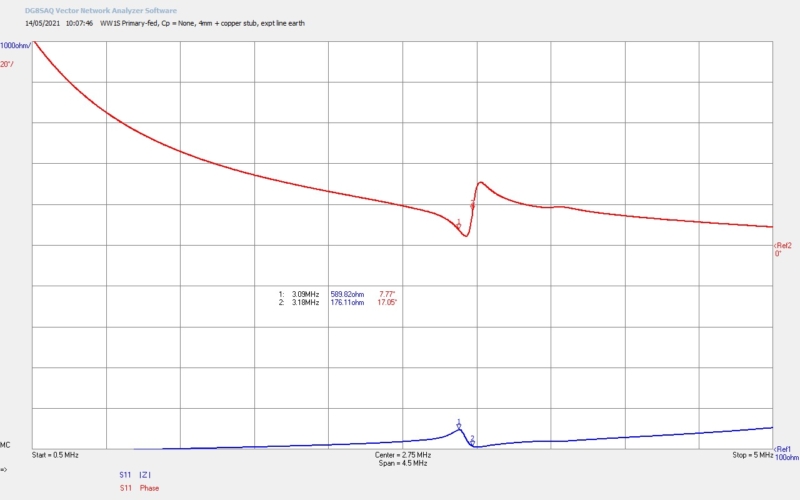

Fig 5.3. Here we have now combined the primary and secondary coils directly in the arrangement that they will be driven by the generator. The VNWA acts as the generator and drives the primary as a λ/2 coil, and the primary tuning capacitor CP has been removed from the circuit so we can see the basic coupled interaction between the primary and secondary coils. The secondary top-end now includes the short copper breakout point, and the bottom-end is grounded to the line earth circuit used in experimental operation. In other words, other than CP being disconnected from the primary, the circuit is identical in connection and arrangement to that driven by the generator in the video experiment. We can see that in this primary-fed measurement ƒSS at marker M2 has now shifted down considerably from the free resonance of the secondary on its own at 3.44Mc to 3.18Mc. This is most directly a result of the increased wire length when the secondary coil bottom-end is connected to the experiment line earth. The series resistance at resonance of the secondary RS = 118.2Ω is now transformed into the primary and added to the series impedance of the primary circuit, results in series mode impedance of ZP = 176.1Ω. This is an impedance rather than a pure resistance at resonance as the  phase relationship is skewed slightly by the tight coupling of the secondary and primary.

The parallel mode, as is characteristic when a primary coil is added, has flipped to a frequency below the series mode, and now forms with interaction from the primary, the lower parallel mode at marker M1 at 3.09Mc. The upper parallel mode from the primary coil is at a frequency above the upper end of the scan at 5Mc. This is as a result of the primary tuning capacitor CP having been disconnected, making the self-resonance of the primary coil based on its inductive reactance, and very low self-capacitance, pushing the self-resonant frequency much higher than the bandwidth of this result. When CP is added back into the circuit the upper parallel mode will reside inside the bandwidth of the scan and forms another possible driving point of the system. It can also be clearly seen in this scan the much lower Q factor of the tightly wound and coupled coil arrangement. The compared cylindrical coil which is loosely wound, and with lower primary to secondary coupling factor exhibits a much higher Q, and is much more suitable to experiments in transference of electric power demonstrated particularly in the High-Efficiency Transference of Electric Power experimental series.

It should be noted that there is a slight inflection in the impedance measurements at ~ 3.65Mc which results from connection to the line earth system, and indicating a slight resonant interaction with the earthing system. This interaction continues through the rest of the characteristics but is very minor and not expected to influence the experiment in any significant manner. When the line earth connection was removed and replaced with a long wire extension at the base of the secondary coil this slight inflection does not appear in the characteristics, as can be seen in figs. 5.1 and 5.2.

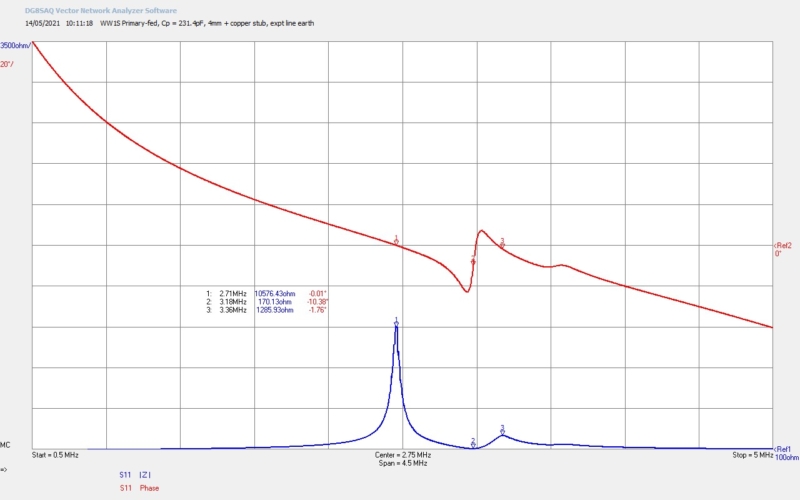

 Fig 5.4. Shows the characteristics of the coil system when tuned to the optimum driven point used in the video experiment. This optimal point is based on using the GU-5B vacuum tube, and when stability, coupled output power, and dissipated power, are all taken into consideration empirically during operation. The primary tuning capacitor has been set to CP = 231.4pF, and it can be seem that the lower parallel mode ƒL is strongly dominant at marker M1 at 2.71Mc. The series resonant mode ƒO is stable as before at M2 @ 3.18Mc, and the upper parallel mode ƒU is suppressed at M3 @ 3.36Mc. During part 1 of the video experiment the lower parallel mode operation point was stably used at input powers over 2kW to demonstrate the nature of the fractal “fern” discharge, and varied in measurement from ~ 2.65Mc to 2.75Mc, a good correspondence to the impedance measurements at this driven point. At M1 the primary resistance RP ~ 10.6kΩ is reasonable match to the anode resistance of the tube, and when fine adjusted using the grid bias rheostat. At this operating point it is demonstrated that significant power can be coupled from the generator to the Tesla coil, and with the formation of hot white fractal “fern” discharges up to 30cm in length.

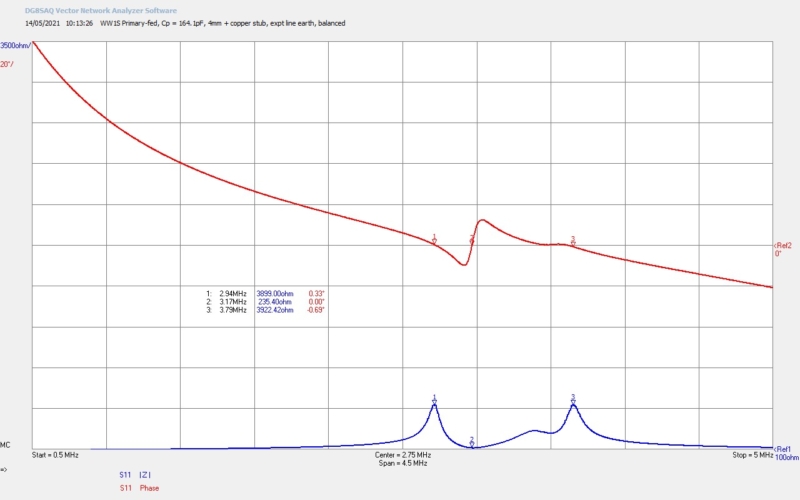

Fig 5.5. Here the primary tuning capacitor CP = 164pF, and has been tuned to the point where the upper and lower parallel modes are balanced in impedance and essentially if the coils where uncoupled the two parallel modes, one in the secondary, and one in the primary, would occur at the same frequency. The series resonant mode remains stable with only a very slight shift to 3.17Mc. When driven using a series feedback oscillator, as is the case in this experiment, this would be an unstable drive point where oscillation would flip backwards and forwards between the upper and lower parallel points from 3.79Mc down to 2.94Mc. In practise it is possible to wind the tuning from the stable lower parallel frequency below 2.94Mc up through the balanced point and up above 3.79Mc to a stable upper parallel frequency, which is demonstrated as one of the variations in part 2 of the video experiment spanning a frequency range from 2.1Mc up to 4Mc, and back down again.

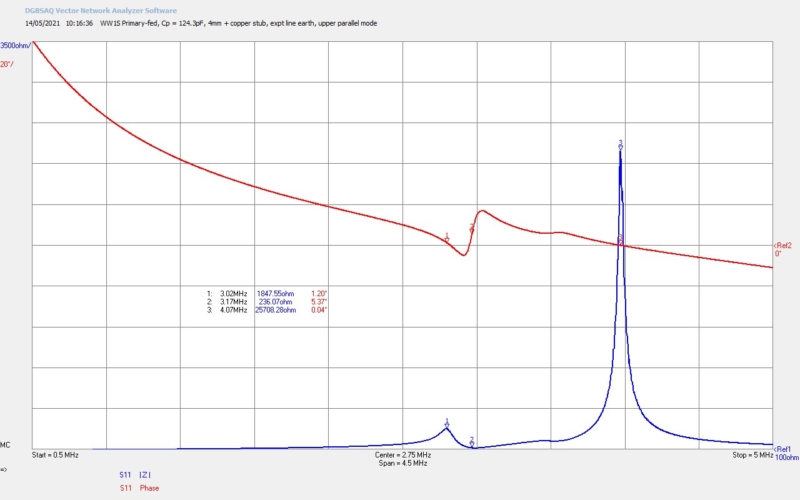

Fig 5.6. Here the primary tuning capacitor has been further reduced to CP = 124.3pF, and the upper parallel mode is now dominant at 4.07Mc. The series mode remains unchanged at 3.17Mc, and the lower parallel mode is now suppressed at 3.02Mc. In part 1 if the experiment it was difficult to get the GU-5B to oscillate at the upper parallel mode, even given the strong dominance  of the upper parallel mode. If we look at the primary resistance at M3 we see that RP significantly increased to ~ 25.7kΩ, which takes it outside of a reasonable match to the anode resistance of the tube. Even by reducing the grid bias to increase the anode resistance the upper parallel mode did not prove to be a stable operating point using a single GU-5B tube, and where considerable power could be coupled from the generator to form discharges at the top-end. In part2 of the video experiment where dual 833C triode tubes were used in place of the single GU-5B, the upper parallel mode could be stably tuned and significant power could again be coupled to the Tesla coil to produce fractal “fern” discharges of a varied nature at 4Mc.

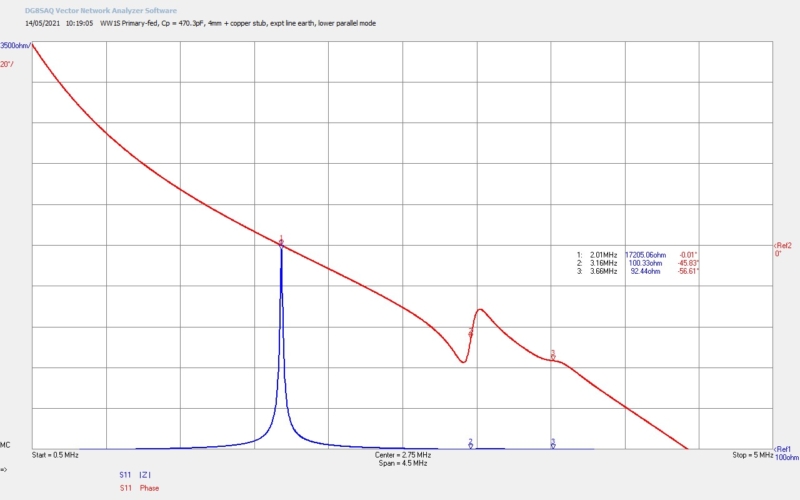

Fig 5.7. Shows the lower limit of operation which could generate even a very small discharge in the video experiment, when the primary tuning capacitor CP was increased to 470.3pF. The lower parallel mode is strongly dominant at M1 @ 2.01Mc, the series mode remains largely unchanged at 3.16Mc, and the upper parallel mode is almost entirely suppressed at 3.66Mc. Below this point the GU-5B could not oscillate and no discharge could be generated at the top-end of the coil. At this point the lower parallel mode is almost 1.2Mc away from the series mode, and considerable increased forward potential from the generator would be necessary to observe even a small discharge at the breakout.

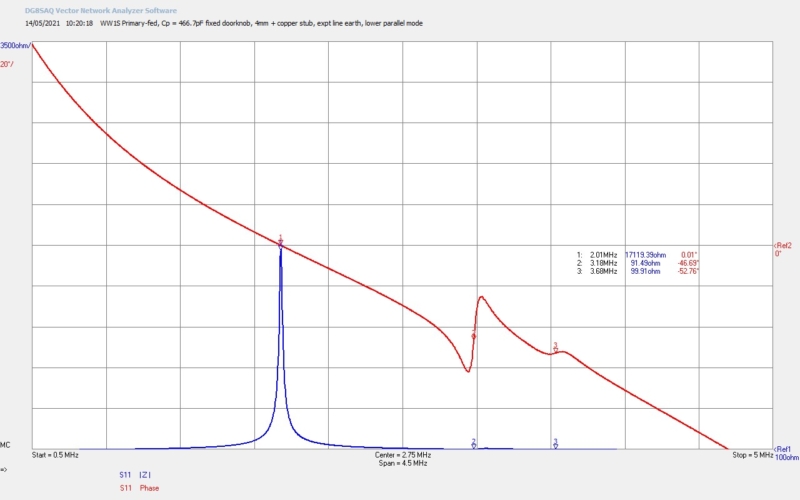

Fig 5.8. For comparison with a fixed door-knob capacitor this result shows the vacuum variable capacitor replaced with a 466.7pF door knob. Positions of upper, lower parallel, and series modes remain largely unchanged. The Q of the resonance  is slightly increased by using the door-knob rather than the vacuum capacitor, but otherwise there seems little other advantage to using the door-knob instead of the vacuum variable capacitor, at the currently used generator potential and output power. The door-knob does have a higher voltage rating at 15kV, and this would be significant if running the generator with level shifted output up to 9kV in order to generate longer tendrils in the discharges. Otherwise the vacuum capacitor with a high-Q and 10kV nominal rating is most suited to the variations of tuning that can be accomplished in this experiment.

Overall the small signal input impedance characteristics Z11 for the coil system show good correspondence with the actual operating points, and allow for the accurate selection of required generator drive point,  and the necessary impedance matching required to transfer maximum power from the generator to the Tesla coil secondary in the configuration selected for the experiment. The magnitude of the voltage swing the tube can provide across the primary coil has a big impact on the length of the discharge tendrils generated at the top-end of the secondary, and the magnitude of the current the tube can pass through the primary circuit, combined with strong magnetic induction field coupling to the secondary, has a big impact on the strength of the discharge streamers. In this case hot, white, thick filaments from strong primary currents, combined with long tendrils from high top-end potentials are ideal for the observation and measurement of phenomena demonstrating the wheelwork of nature.

Fractal “Fern” Discharges

Figures 6 below show a range of high-definition pictures taken close-up to the top-end of the secondary throughout the experiment. The pictures have been selected to illustrate the range of different fractal forms that are observed in the experiment, and the various features and characteristics that accompany each form variation. All discharge pictures are based on the same scale size, so they can be readily compared for height and width between the various geometric forms. Sequences of pictures were taken on the same operating run, and with the same configuration and tuning of the coil system facilitating direct comparison of each discharge one to the next.

From taking many photographs of the discharges during operation, and looking through them in detail, it is clear that the discharge forms are not just random, but follow various patterns and hence can be grouped together according to their observed characteristics. The images in figures 6 have been collected together to represent the range of different types of discharges observed. Although here only two images of each are shown, there are mostly numerous examples of each form amongst the recorded images. The main observed groups are presented below, but first a consideration of the common features of all of these fractal “fern” discharges:

Common Features

All of the discharges appear as a self-similar, self-repeating structure that consists of tendrils emerging from either the breakout point as a primary tendril, or a sub-tendril (secondary, tertiary etc.), which emerges orthogonal from the parent tendril. An individual tendril at any level appears to progress from its emergence straight or with minor curve for a reasonable extension, before starting a clearly defined curve towards a centre point, and it could be conjectured would continue in ever decreasing arcs in the form of a spiral, if the plasma discharge within the tendril were able to extend further in the medium. Indeed some of the tendrils have been observed to curve almost 3/4 of a complete revolution at their outer extremity. Emerging tendrils along the length of any parent tendril also appear to emerge at similar proportions along the length of the tendril, when tendrils are compared one to another. Almost all emergence of major sub-tendrils appear orthogonal to the parent tendril, with the exception of very small tendrils that also display some bifurcation particularly, but not exclusively, towards the outer tips of the tendril extension.

In all the discharge pictures the start of the discharge appears to be at the breakout point, and the extinction process of a tendril also appears to support this. This may appear as obvious, but needs to be considered carefully when we take into account the emergence and growth of this patterned discharge. For example, terrestrial lightning has been shown to be a combination of a sky discharge, and a land based streamer extending from the ground upwards to meet the down-coming discharge, which is yet an area of considerable research and exploration. All the tendrils start from a hot-white plasma-like extension indicative of significant RF currents in the discharge which produce a very high-temperature plasma in the core of the tendril. As the tendril grows outwards and the plasma is cooler it takes on the characteristic purple-blue colour of a weaker discharge state. The outer tip of the tendrils often ends in a group of tiny filaments extending outwards along the trajectory of the tendril, often curving with reduced radius to a seemingly invisible centre point at a conjectured centre point.

The major tendrils are wrapped in many tiny orthogonal filaments which are present along the entire length of the tendrils, and most interestingly appear relatively constant all the way back to the very hot emergent point close to the secondary breakout. The filaments very numerous in quantity take on a bluish-purple hue somewhat different to the tip-ends of the tendrils. It appears that the purple of the tip-ends would occur from the diminishing intensity of the tendril far from the source point, whereas the bluish-purple hue of the tiny filaments appears constant along the length of the tendril irrespective of the intensity of the tendril at that point, the filament being only proportional in length to the intensity of the tendril.

As can be observed in the videos the discharge does not sound as an aggressive crack or discontinuous voluminous sound similar to a lightning discharge, but takes on a rather pleasing and peaceful hum that could be likened to a plasma discharge in a spark gap. This peaceful hum implies that the discharge is free of discontinuous breakdown events, where ionisation of the surrounding medium occurs within very short time periods in a random impulse like discharge, but rather as an established quiescent, balanced and stable process that is capable of repeating and regenerating itself from one moment to the next.

In all the images taken of the discharges there are many examples of equivalent geometric proportions, non-symmetric and symmetric pattern formation, sequences of similar geometric forms leading from one to another, (in the limit of the current photography and filming equipment), and the overall impression of a discharge process that is well organised, orchestrated, and manifested, and one that reflects choreographed and regenerative behaviour emanating from an invisible and underlying set of unknown principles and processes. What follows next are the noted recurring yet different geometric forms. To view the large images in a new window whilst reading the explanations click on the figure numbers below.

Tall, Narrow, Curved and Non-Symmetric

Figures 6.1 and 6.2 show this form of discharge where a single central primary tendril curving in any direction at the upper limit of its vertical travel. This form tends to be tall and narrow in width, dominated by a single central tendril, and with smaller other primary tendrils extending out from the base. In this form secondary tendrils emerging from the primary tendrils are usually much smaller, and much less developed than the primary ones. It appears as though the majority of the energy in this discharge is focussed on the primary or root tendril, and enables considerable vertical height to be accomplished, at the expense of not spreading out sideways, or the development of major sub-tendrils. In the experiment operation the major tendril in this form was noted to extend to over 30cm in height from the breakout.

Tall, Narrow, Straight and Non-Symmetric

Figure 6.3 shows an example of this more unusual discharge, in that it was rarely seen in the image sequences. In this case there is again a tall and narrow form, but the there is very little curvature at the end of the main tendril. The main tendril tends to be less developed in sub-tendril detail, and even the tiny filaments seem much less numerous and present along its length. This main vertical tendril tends to come to a sharp and well defined point, without bifurcation or parallel filaments at its outer extremity. Again this form was on occasion measured to over 30cm long. In this particular picture the straight vertical main tendril is accompanied by another well developed tendril to the left which displays all the common elements of most discharge tendril.

Wide, Low, and Symmetric

Figures 6.4 and 6.5 show a group whose form is very distinct and different from those yet discussed, and is in my opinion one of the most beautiful image groups I have yet taken of the fractal “fern” discharge. In this group there is always a very high degree of vertical symmetry from repeating and self-similar patterns that grow out horizontally from the breakout point. Here in this example the symmetry is very well developed between the two primary tendrils that emerge equally left and right from the breakout. Indeed the symmetry is so good that one could almost place a mirror down the vertical axis and reflect either side to the other. The proportions of emergence of sub-tendrils are very similar on all the major tendrils, and also secondary and even tertiary tendrils are much more highly developed than in other groups. The secondary tendrils here are well developed and repeat with high intensity the same self-repeating structure of the parent. Bifurcations at the outer extremities are more numerous in this group, and often the tiny filaments more defined, and more easily distinguished along the length of the tendril.

Furry with Numerous Sub-Tendrils and Filaments

Figures 6.6 and 6.7 show a very interesting group of discharges that appear furry or fuzzy as a result of the numerous mini sub-tendrils, and more numerous tiny filaments along the length of the major tendrils. This is similar to Eric Dollard’s original image which also appears quite furry from the numerous tiny filaments. This “furriness” can appear in any of the other geometric forms and is most easily spotted from the many mini filament between the mini sub-tendrils. Here in figure 6.6 this is observed on a symmetric structure, where 6.7 shows the same characteristics on a tall and narrow structure. Characteristic to this form are also many sub-tendrils that emanate numerously along the length of the major tendril, but also themselves bifurcate often at their tips producing mini fan-like structures. The fan-like structures give the impression of movement or vibration within the form, and helps to illustrate the intricacy and dynamic detail that is present in these fractal “fern” discharges.

Double-Wound “Vortex” Vertical Tendrils

Figures 6.8 and 6.9 show another very interesting geometric group which consist of double-wound tendrils, like a vortex, vertically extending from the breakout upwards, before splitting apart to develop further detail, tendrils, or bifurcations at their upper ends. In figure 6.8 the tendrils spread out at the top and form similar secondary tendrils. In figure 6.9 the tendrils split from the vortex but follow a similar trajectory and form to the outer limits of their extension. This vortex form is most usually tall and narrow, and consists of two primary tendrils of very similar intensity, where sub-tendrils can also be emitted outwards during the vortex stage. This form is often accompanied by tendril symmetry either horizontal or vertical, and most pronounced after the tendrils have split from their wound trajectory.

Tendril Extinction

Figures 6.10 and 6.11 show examples of tendril extinction, so what happens when a fully developed tendril starts to collapse. These pictures appear to support the notion that discharges emanated from the breakout point expand outwards, and when the available energy in the tendril is exhausted the tendril terminates at the breakout point first before extending outwards again as the remaining energy, at a distance from the breakout, is consumed. The extinction of a tendril appears analogous to an exhaust plume after the ignition and burn process, as the plasma collapses along the length there is left a residual ionised trail in the air. The extinction of a tendril is also an interesting process in and of itself as it suggests the question … Why, when a streamer or tendril has been established, would more energy supplied to the top-end of the secondary coil, simply not continue to “pour” through the low impedance channel opened by the tendril in the medium ?  I suppose the answer to this lies in understanding the underlying causes of these discharge forms, the guiding principles in the wheelwork of nature, and the specific vibrations that gives rise to the dynamic formation, behaviour, and extinction of these forms.

After now looking at the currently observed geometric forms so far, it is necessary to look also at the temporal sequence of geometric forms. This part of the results and analysis is preliminary, as it could benefit greatly from improved high-speed photography and video equipment in order to observe slow motion video, and photographs with very short time intervals, but is presented here in order to give an idea that there is both a defined temporal sequence, pattern, and I would even go so far at this stage to suggest a “dance” that emerges within the discharge sequence. By “dance” I am referring to repeated and correlated sequences in both the geometric and temporal dynamics of the discharge, rather than a randomly occurring an unrelated collection of lightning like discharges.

Figures 7 and 8 present two such temporal sequences over different time spans, but taken with successive and rapid (for the equipment used) images. Figure 9 shows a side by side comparison of the these sequenced images all together, to give a clearer visual impression of the patterns being referred to. When combined together and compared, a pattern could be conjectured to exist at a geometric and temporal level in these results, although this conjecture would be greatly strengthened when very slow-motion video, and very high speed photography is available. Again all sequences in the following figures are taken on the same scale, in the same operation run, and at the same experimental setup and operation parameters.

Overall from the time sequences it could be conjectured that there is a choreographed “dance” taking place, in this case from the images taken with the current equipment available, that over a time period the dance goes as follows:  1. reach upwards as high as possible – 2. branch out sideways in a symmetric way –  3. bend to the left (or right) – 4. bend the other way –  5. twist around and rotate, before starting the sequence over again. As previously said, high speed video and photography will show if this really is the case, although it is most interesting at this stage in the exploration to even consider that there might be a geometric and temporal sequence to this dynamic discharge process, and another interesting insight in to the possibilities presented by the grand design and the underlying wheelwork of nature.

The final images in this post in figures 10 show a simple preliminary fit of the tendril end curve to the golden spiral rectangle model. As previously shown almost the entire majority of primary and secondary tendrils, (other than those fewer examples in the narrow, tall, and straight group), have a curve at the end of the tendril that appears, if extrapolated, to wind into an ever decreasing radius like a spiral to a centre point. The first section of the tendril is usually straight, either outwards from the breakout point, or orthogonal to the parent tendril before starting to curve gently in a downwards fashion. After a given expansion outwards the tightening of the curve begins, and it is this curve that is interesting to see how closely it adheres to the golden spiral or fibonacci spiral. For this fit two images were selected that are considered to have tendrils that are square on to the camera, that is, they are not rotated out of plane, and hence the curve becomes distorted in the image by perspective. In each of these images the rectangle model for the golden spiral is scaled and added over the top of the images, and fitted if possible to the extent of the visible tendril. The overlay golden spiral rectangle model[3] curve being in blue, whilst the rectangle boundaries are in grey, and the construction guide lines of the rectangles in red and green dotted.

So now that we have reached this point, what do all the experimental results, measurements, and the observed phenomena show us about the wheelwork of nature ?  And what can we then say about how to “attach” our machines to this wheelwork ? If we now make a more detailed consideration of the subtle features of the results, and conjecture on both its scientific and philosophical implications, then this may start to become clearer.

Fractal Nature

The overall nature of the discharge displays a fractal like structure, that is, a seemingly never ending structure where the pattern of any part of the structure is self-similar and repeated across different scales. It can be seen that from any primary streamer or tendril, a secondary tendril emerges which is a smaller copy of the same geometric structure as the primary tendril. In some cases a tertiary tendril can be seen emerging from this secondary tendril, which is again a smaller copy of the same geometric structure as the secondary and primary tendril. It is conjectured that at any scale that the discharge could be observed, the bifurcation of the tendril is repeated with self-similar structure and characteristics in its nature and form.

A fractal is also a mathematical shape with well defined equations, and can be precisely modelled to show its self-similar structure at any scale. Many different forms of fractals are found throughout the natural world[4], and appear to form a basic building block which repeats its order and structure to form vast and complex macroscopic forms from the smallest microscopic form. This in itself suggests interesting qualities that for me relate to purpose for the wheelwork of nature. The microscopic to macroscopic self-similar geometry suggests that the inner and outer worlds, that is, what you can see, and what you cannot see, are connected and joined as a reflection of one another independent of scale. So we might conjecture that what we perceive in the outer world, is directly reflected within nature’s own hidden world. The law of light and reflection in this case would imply that if we can perceive an event or experience on the outside, then we somehow and somewhere can find that reflected on the inside, as is above is below, as is without is within. If we care to take an objective, open, and considered look at any aspect of nature as a tiny cog in the overall wheelwork, then it is not so difficult or unrealistic to see the correspondences between these inner and outer worlds.

From a philosophical standpoint, what can we not learn about nature’s hidden principles and life in general, from the perspective that the macroscopic is showing us something truthfully reflected to the microscopic ? Is this not a hint as to how to “attach” our experiments and machines to the wheelwork of nature ? I would conjecture and propose that it is, on the basis that principles and mechanisms that we find in our experiments, apparatus, and machines can be corresponded to principles and processes that relate directly to how we sense nature’s hidden world, and that more fundamentally the converse is true, that what we create or destroy in the outer world is only a reflection of the intent, principles and processes going on inside. When we see the correspondence of both the inner and the outer then we establish a synchronicity with the natural order, our tiny cog meshes directly with the wheelwork of nature, and our machines function directly in tune or “tuned into” life’s fundamental processes. So I would propose that, to attach our machines to the wheelwork of nature they must embody basic natural principles and laws, and have a purpose which reflects an intent that is inclusive, life-supportive, and inter-dependent.

Golden Spiral/Ratio Geometry and Proportions

From the results presented in figures 10, it can be conjectured that the curve of the tendrils displays a tentative fit to at least a section of the golden ratio proportion when using the golden spiral rectangle model, for which the ratio between its length and width is the golden ratio in each quarter turn. This model produces a repeating spiral which whilst not truly logarithmic, is a close approximation to the golden spiral. The golden spiral is in principle a logarithmic spiral with a growth factor determined by φ, the golden ratio, and increases in width by the factor of φ for every quarter turn of the spiral[5]. The spiral exhibits self-similar structure in the same way as for the fractal in the previous section, and in principle repeats constantly at the same ratio at any scale from the microscopic to the macroscopic. The golden ratio and spiral is very well explored and documented[6], at least as a mathematical and naturally occurring geometric structure, and which has been deliberately incorporated into man-made geometric and artistic constructions, where it is said to create an natural, intuitive, and aesthetically pleasing visual proportion.

For me the possible presence of the golden spiral proportion in the discharge suggests that again the phenomena, and the apparatus that has revealed or stimulated this result, is in some way again “tuned into” the wheelwork of nature. It is interesting to note that the designed geometric proportions of the TC system were not designed on the golden ratio either in height to width of the secondary, inter-turn spacing to conductor diameter of the secondary, or in arrangement with the primary proportions and wire. It could be speculated, and it is a speculation at this time, given the lack of any confirmation from direct measurement, that the dielectric and magnetic fields of induction, Ψ and Φ could be related to each other in the golden proportion.

Both induction fields exist in and around the discharge and their relationship itself may be in the golden proportion which in itself determines the path and geometric curve of the streamer. When one considers a wide range of different possible discharges from a TC system, dependent on coil geometry, fundamental resonant frequency, and generator drive method and envelope, it would seem very likely that the nature and structure of the discharge could be strongly dependent on the relationship between the induction fields Ψ and Φ. This is an area that would benefit from a much more comprehensive study into the diversity of structure and form of a TC streamer, its principles, mechanisms, and key causative parameters, along with of course the specific relationship between Ψ and Φ, and how the discharge materially manifests, in energy, space, and time.

Another seemingly small detail to note is the “apparent” direction of growth of the spiral like tendrils. A superficial look at any of the discharges presented in this experiment would easily lead the observer to consider the generator as the source of the tendril, and the surrounding environment to be the sink of the tendril, or in other words the tendril extends from the HT tip at the top of the secondary and grows outwards from this tip into the surrounding environment, its length dependent on the HT electrical pressure from the accumulated charge at the top-end of the secondary. On further consideration of the fractal nature and tentative golden spiral fit,  it could be conjectured that the source of the spiral is actually within the microscopic and that the discharge is pulled out of the breakout point and disappears into the hidden inner spiral, or we may even consider it to be a form of vortex. This could be supported by the tendril extinction images where the major tendrils are seen to terminate from beginning through to the end-tip, also lending to the analogy of being called-forth or “pulled” from the experiment, rather than being “pushed” out from the experiment. This conjectured reversal of source and sink brings up interesting possibilities as to the origin or source of the discharge, the process of creation and destruction, and the nature of polarity and potential, all important areas worthy of considerable further exploration and discussion.

Orthogonal Filaments, Disruptive Discharges, and Displacement

Vassilatos[7] gives a most interesting account of one of Tesla’s very early experiences with radiant energy when he observed that a high voltage DC when suddenly applied to an electrical circuit, such as in long cables in power transmission, or when a high voltage DC dynamo was connected to the rails of a railway track with a distant load, it produced a very brief and transitory, “hedge of bluish needles, pointing straight away from the line into the surrounding space”. The important aspects that we consider here from this are that the bluish needles were firstly always orthogonal to the conductor, and that they were only briefly transitionary, that is, until the electrical pressure from the DC source had been distributed across the extent of the electrical circuit.

It is similar arguments and conjectures that I have used for displacement, that this is an underlying guiding mechanism and principle that is ever present within the inner workings of electricity, but is only revealed and hence observable, when a non-linear transient change in an electrical system imbalances the equilibrium of the electrical circuit to such a degree, that displacement must act in order to “accelerate” the dielectric and magnetic fields of induction into their new equilibrium conditions, and in so doing emitting a secondary emanation, or what Tesla called radiant energy. Consideration of the mechanisms and processes involved in what I have termed displacement and transference of electric power appears in many posts on this website, and is introduced in detail in Displacement and Transference of Electric Power.

The correspondence and similarity I make in our current considerations of the experiment in this post, and hence to the mechanism and process of displacement, results from the tiny orthogonal filaments that accompany all of the major tendril activity in the discharges. These micro filaments appear as a “bluish hedge”, and are ever present surrounding the tendrils. It appears from the furry group of discharges that the dynamic nature of the discharge is more agitated, more in motion, and changing on a shorter transient time period. Now, it cannot necessarily be concluded at this early stage of exploration into the wheelwork of nature that the “bluish hedge” is the same in both Tesla’s observation, and in this reported experiment, but it can certainly be speculated on and conjectured that it is the same underlying principle of displacement, resulting from the dynamic transient changes in the relationship between the dielectric and magnetic fields of induction, Ψ and Φ, that is observed in both experiments.

The forward pressure of the discharges, pumped by the generator on successive cycles, charge accumulated at the top-end of the cavity in the secondary coil, and the dielectric induction field magnified to a high-potential at the top-end, all result in an momentary explosive outward pressure in the form of a discharge into surrounding space, a “disruptive discharge” as Tesla called it[7]. This disruptive discharge by its very nature has already unbalanced the surrounding electrical equilibrium of the common medium, calling forth the same guiding principle of displacement that we have been hitherto discussing. The orthogonal filaments or “bluish hedge” are the visible phenomenon of a displacement event, that provides the needed balancing force as the energy in the discharge is absorbed or “sunk” into the surrounding medium, or to conjecture through insight alone, is “sucked” or “pulled” out of the common medium by the spiral-like vortex that exists at the end of each of the active tendrils, and transferred back into the aetheric medium. With the energy of the tendril transferred, the balance of the common medium has been restored, before another explosive and disruptive event begins. Such is the process of displacement of electric power, and of course much work and observation required to confirm or not the validity and scope of the conjectures I am making here.

Vibration, Resonance, and Frequency

In all the variation experiments so far undertaken in this experimental post the only parameter that made a difference to the observed discharge phenomena was the ability to drive the experiment stably at a higher frequency. Resonating at the lower parallel resonant mode the discharge geometry and form where observed to be the same for both the GU-5B, and the 833Cs. At the upper parallel resonant mode the geometry of the discharge was tighter, the tendrils were smaller, more numerous, and with more sub-tendrils, in short the phenomena was more “dense”. However in both upper and lower parallel modes the nature of the phenomena was the same, and it is conjectured that the same underlying principles, and relationship between the dielectric and magnetic fields of induction existed. In other words the vibration of the phenomena and its associated qualities are the same in both cases, whilst the variation of density was brought about by a change in frequency, a specific quantity that reflects one of the parameters of vibration. This now brings about probably the most important distinction that needs to be made in the consideration of this experiment, that is, the differences between vibration, resonance, and frequency.

It should be clear thus far in this exploration that I am referring to vibration as a most fundamental expression of nature, everything has an underlying vibration in life, from galaxies, to suns and planets, to human beings, animals, plants, minerals, to scientific experiments, apparatus and equipment, natural laws and principles, and of course to the very wheelwork of nature itself. In this grand diversity vibration suggests the qualities that together constitute the form to which they are attributed. The very vibration of a collective form determines its purpose, inter-actions and relationships not only to itself but to the common medium surrounding the form, and of course to other forms. It is through the qualities of vibration that any collective form relates to the world around it, and is either attracted or repelled from any other form.

Such is the rich quality of vibration, and the apparatus required to attune to the surrounding vibration powered by the wheelwork of nature. It is through tuning to these vibrations, that we can establish resonance with or between other manifested forms. Resonance then is depicted here as the intelligent cooperation or interaction between at least two forms vibrating with a shared and common purpose. Through resonance potential can be transformed to action, as the voltage accumulated on a capacitor, can be transformed to current flowing in a circuit, and the storage of a magnetic field in an inductor, and back again, as energy is passed backwards and forwards between two electrical components, two forms vibrating together with shared electrical characteristics, qualities, and purpose.

The frequency of the vibration represents only one scalar quantity that is easily measured in this experiment. In the basic experiment the lower parallel resonant mode was at ~ 2.7Mc and this is but one quantity of a quality related to time, that defines the nature of the results obtained here. But it is not enough to characterise the phenomenon entirely by saying, the only parameter that matters in this experiment is the frequency at which the secondary coil was designed to resonate at, so in other words frequency could tell us how but not why! Yes, the frequency of the secondary coil is important, for if another coil is made at say 300kc it will not show the fractal “fern” discharge phenomenon, so rather it is the qualities underlying the 300kc coil that define the vibration of the phenomenon, and hence the nature and the form of the discharge. So the designed and operated frequency of the secondary coil is but one parameter in a set that represents the specific qualities of the vibration that is observed as the fractal “fern” phenomena in this experiment.

The task ahead in working to understand the wheelwork of nature is to reveal, discover, and explain the qualities that underlie any particular vibration, and then to design and develop apparatus that can reflect that vibration in its operation. By doing this we would have attached our apparatus to the wheelwork of nature, and phenomena will be called forth according to the vibration attuned through resonance that we have intended in the purpose of the apparatus. If the purpose of the apparatus is for our own exploration and utility of the world around us, then I could also imply that our apparatus is only a reflection of our own vibration, purpose, and qualities, and hence the circle of life is complete in the acquisition of self-knowledge through discovery, experimentation, and relationship.

Such are my philosophical and esoteric considerations on the wheelwork of nature, but it should now be clear to the reader of this post, that if the wheelwork of nature is to be progressively uncovered or dis-covered, and its unknown secrets to be under-stood and harnessed then we must look beyond the face value of the outer form of our experiments and apparatus, and the single viewpoint that science can reduce the richness and diversity of the great mystery to a simple explanation of the outer form. The outer form is only but the reflection of the inner principles, qualities, and mechanisms that constitute its purpose and place in the inner world. It is this hidden or inner world, or the wheelwork of nature, that we must turn our attention and endeavours to, and in so doing start the long journey to the re-unification of science, philosophy, and the esoteric.

Summary of the results and conclusions so far

In this post we have presented an apparatus and experiment which generates a Golden Ratio / fractal “fern” discharge, and I have suggested that this form of phenomena is suitable for the exploration of the wheelwork of nature, based on my interpretation of a quote originally made by Nicola Tesla. The fractal discharge presented in both experimental videos has been carefully observed and measured, and a range of conjectures put forward to the signifiance and relevance of the results to the underlying wheelwork of nature being explored. Specifically the experiment has demonstrated, suggested, and conjectured that:

1. The biggest variation in the experiment is frequency, and that even a standard Tesla coil designed and operated over the frequency range of interest, combined with a generator suitable to supply sufficient forward pressure and power to the Tesla coil, will display a discharge in the form of a fractal “fern”.

2. The discharge in this experiment clearly demonstrates fractal like properties, and shows a partial fit in the discharge tendrils to the golden spiral and proportion, despite these proportions or considerations not being included in the Tesla coil or generator design and construction.

3. It is suggested that the fractal “fern” discharge consists of both spatial and temporal order, originating from underlying unknown principles which are conjectured to be directly principles from within the wheelwork of nature.

4. It is suggested that the tiny orthogonal filaments observed along the major tendrils are related to the principle of displacement of electric power, an underlying principle in the wheelwork of nature, and one that also relates closely to reports from Tesla’s own work.

5. It is conjectured that the fractal “fern” discharge phenomena results directly from the relationship between the dielectric and magnetic fields of induction, and this relationship is defined by the underlying qualities of the vibration, which is a part of the principles of the wheelwork of nature.

6. It is conjectured that the scalar quantity of frequency, found as the key dependent parameter so far, is actually only a small piece of an underlying vibration, which is in and of itself, made up of a range of different qualities.

7. It is conjectured that vibration, resonance, and tuning are key to understanding how to attach our apparatus to the wheelwork of nature, and hence become part of a synchronicity that may extend across many levels and layers of existence.

It is clear from these conclusions that this first experiment in the series is a simple departure point, and considerable further experimentation, measurement, and consideration is required to support or refute the conjectures advanced here. Experimentally next key steps would include:

1. A more extensive experimental study with Tesla coils of different resonant frequencies and geometries, which would start to reveal the different types and forms of possible discharge phenomena, and their underlying causative conditions and parameters.

2. Identification of additional variations in the experimental system, and particularly including the relationship between voltage and current in the generator drive and primary circuit, along with the envelope and type of drive waveform, and comparison with different types of generator e.g. a spark-gap generator.

3. Development of a measurement technique to gain a clearer representation of the relationship between the dielectric and magnetic fields of induction during operation of the experiment.

And finally for this first post, high speed photography and video would facilitate a deeper look into the suggested “order” and “choreography” of the phenomena, and perhaps a clearer view of how its vibration and underlying qualities are related to the Wheelwork of Nature.

Click here to continue to the next part, looking at The Wheelwork of Nature – Vibration, Frequency, and Discharge Form.


1. Tesla, N. Experiments With Alternate Currents Of High Potential And High Frequency, An address to the Institution of Electrical Engineers, London, February 1892.

2. Dollard, E. Discharge Experiments using an Integratron, Bolinas, California, 1978.

3. Parks Photos. Golden Ratio Overlays, 2015,  ParksPhotos

4. Mandelbrot, B. The Fractal Geometry of Nature, W. H. Freeman and Company, New York, 1983.

5. Wikipedia. The Golden Spiral, Wikimedia Foundation Inc., Wikipedia, 2021.

6. Meisner, G. The Golden Ratio – The Divine Beauty of Mathematics, The Quarto Group, New York, 2018.

7. Vassilatos, G. Secrets of Cold War Technology – Project HAARP and Beyond, Adventures Unlimited Press, Illinois, 2000.

8. A & P Electronic Media, AMInnovations by Adrian Marsh, 2019,  EMediaPress

9. Dollard, E. and Energetic Forum Members, Energetic Forum, 2008 onwards.
